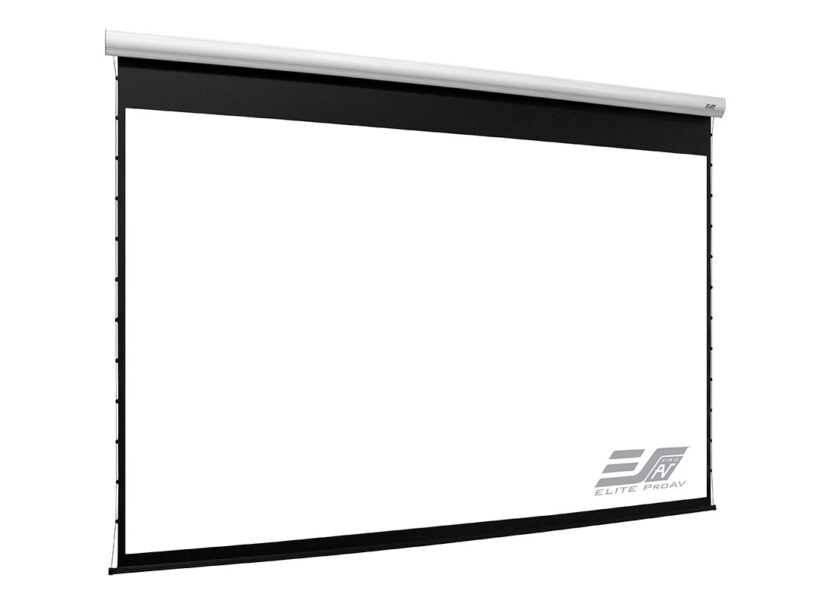

Elite ProAV’s Tension Pro Series is a large-venue motorized retractable projector screen. It features superior flatness using a tab-tensioned system design and is available in sizes from 200″ – 300″ in a 16:9 (HDTV) aspect ratio. Standard accessories include Infrared and Radio Frequency remote controls, a wall box controller, and 12-volt capability to synchronize the screen’s operation with the projector’s power cycle. The Tension Pro is ideal for projection presentations in auditoriums, gymnasiums, or any other large venue indoor environments.

  • 5-year warranty

Tension Pro Series Large-Venue Motorized Projection Screen Product Video
Tension Pro Series Custom Installation Testimonial by Assured AV
Tension Pro Series at Triedstone Missionary Baptist Church in Carson, CA
Material NameGainViewing AngleDescription
CineWhite®1.1180°Tension Matte white material that has broad light dispersion through diffusion uniformity, black & white contrast and true color rendition making it the most versatile in Elite ProAV’s tension screen product lines. The material has black-backing to eliminate light penetration and improves the experience with superior surface flatness

Screen Material

  • CineWhite® 1.1 Gain (tensioned matte white) front projection surface
  • Wide diffusion uniformity allows viewers to see a clear bright picture from any angle
  • Compatible with standard “Long-Throw”, Short Throw and Ultra Short Throw (UST) projectors
  • Standard black masking borders absorb projector overshoot while enhancing visual contrast
  • Black backing eliminates light penetration for a sharper, brighter, and clearer picture
  • Available in the following range of diagonal sizes:
    • 200”, 235”, 250″, and 300″ in 16:9 aspect ratio
    • 189″ in 16:10 Aspect Ratio

Control System

  • Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
  • User-friendly programmable vertical drop position for easy installation
  • Wall box controller is detachable for a clean look while maintaining RF & IR functionality
  • Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
  • 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
    • Wired 12v trigger capability via wall box controller
    • Wireless 12v trigger capability via Radio Frequency remote control

Design and Installation

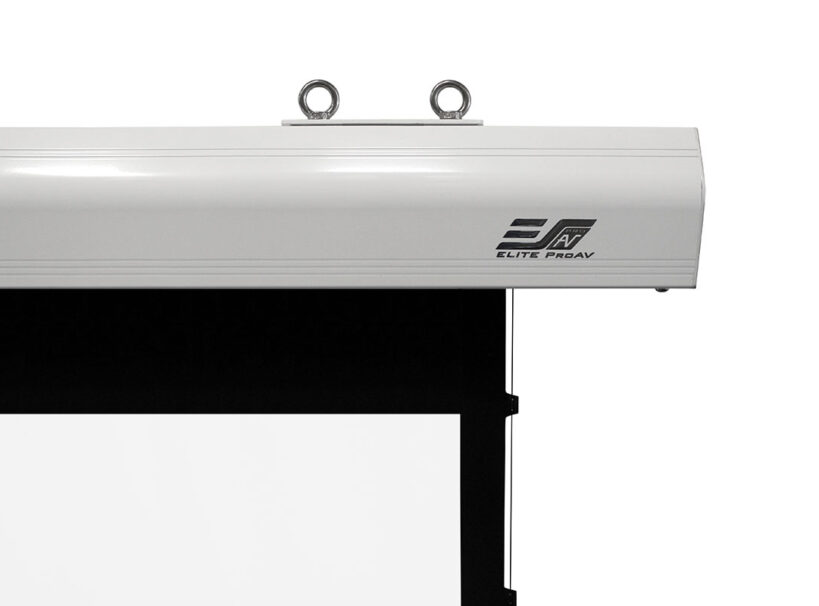

  • Heavy-duty aluminum casing

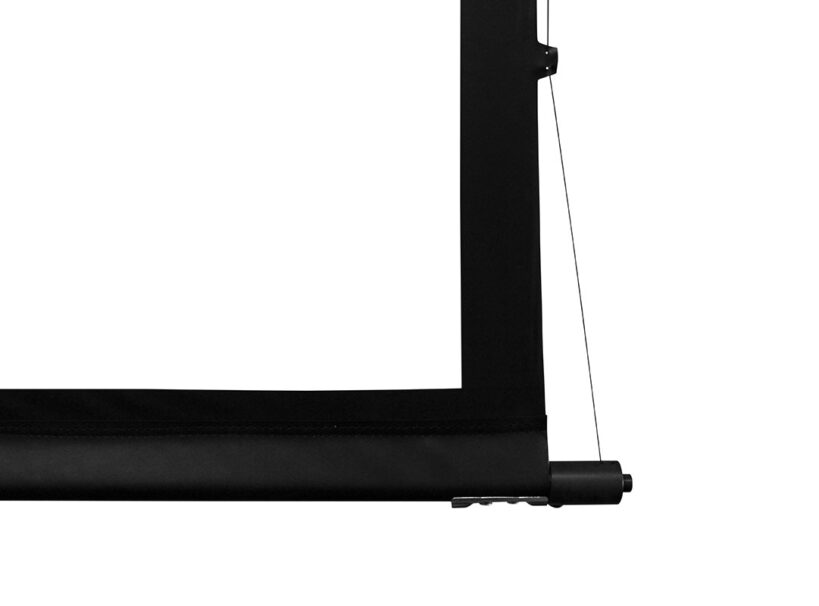

  • Tab-tensioned design provides a flat and taut projection surface ideal for use with ultra-short, short-throw, and standard (long) throw projectors

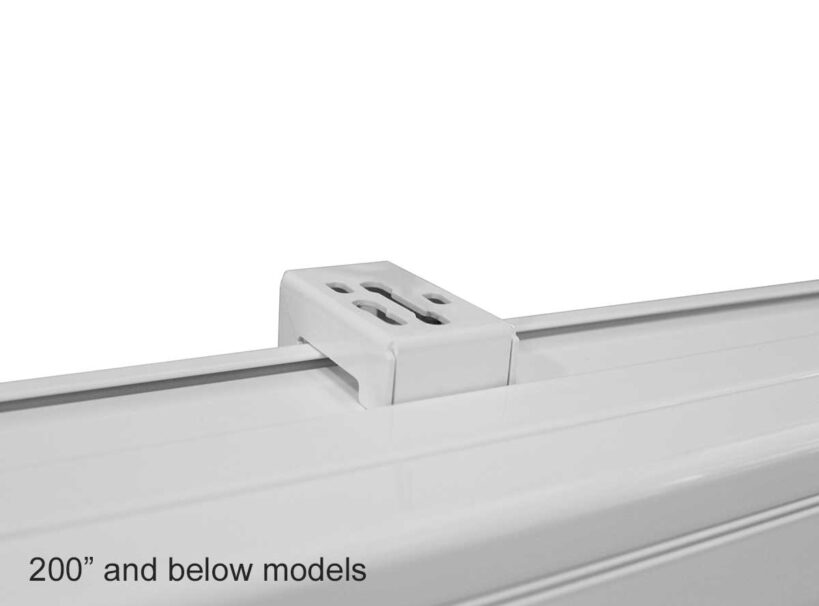

  • Dual wall/ceiling mounting points on 200” models only

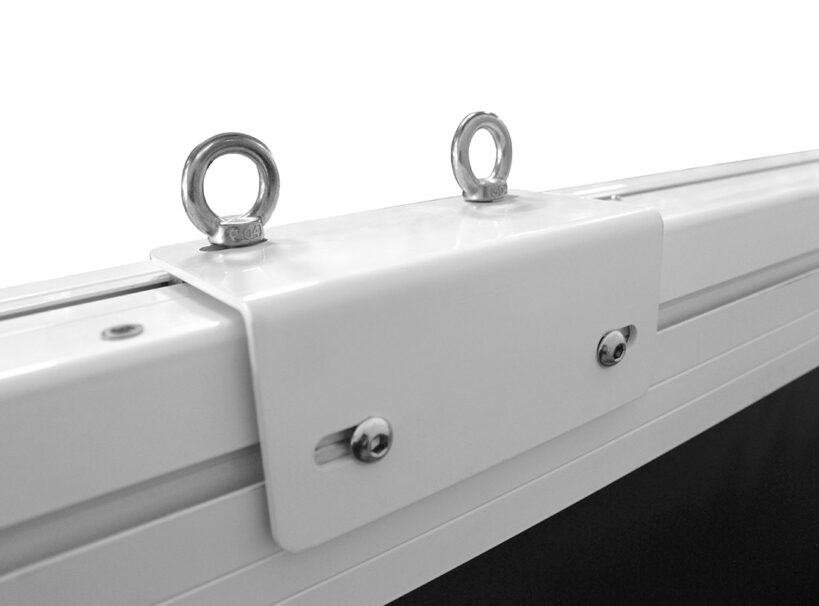

  • Ring bolts included for suspended ceiling installation (models 235”-300”)
  • Comes fully assembled for plug & play operation with no tools or assembly required

Quality and Reliability

  • Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
  • 5-year premium warranty

User Guides

Dimensions Tables

Other



FAQ

Q: Can I purchase a 3-button switch that will send an RS485 signal down a CAT6 cable into the RS485 port of the Tension Pro to control the up, down and stop motions?  I found the ZSP-WB-W on the website, will this optional switch work?

A: The Tension Pro X Type models only have an optional wireless 3-button switch, Z-WALL-BOX-KIT-TP.  The ZSP-WB-W is not compatible with the X type version. The Tension Pro E type models includes a wired detachable 3-button wall switch. You can identify the type you have based on the serial number, for example 183Exxxxx or 183Zxxxxx.
