Manual Tab-Tension Pro Series

The Manual Tab-Tension Pro by Elite ProAV® is a tab-tensioned manual pull-down projection screen. It includes features such as a hands-free retraction mechanism that allows the screen to return into its casing unassisted. It has a tab-tension system to keep the screen material flat and taut uniformly. It is offered in a matte white front projection surface for light controlled environments that is compatible with ultra/short/standard-throw projectors. A ceiling/ambient light rejecting option is also available for rooms with minimal light control.

The aluminum housing for the Manual Tab-Tension Pro projection screen is moisture resistant. The screen comes fully assembled and ready to mount. Floating wall brackets allow the screen to slide into perfect alignment with wood studs for a perfectly centered installation. Eyebolts are included to facilitate suspended ceiling installations.


Where to Buy

Category:

Description

Screen Material

  • CineWhite® UHD-B (For light controlled environments)
    • Tensioned Matte White 1.3 Gain front projection material
    • Wide diffusion uniformity allows viewers to enjoy a clear bright picture from any angle
    • Compatible with Ultra/Short/Standard “long” throw Projectors
    • Black backing eliminates light penetration which prevents picture degradation
  • CineGrey 5D® (For room environments with bright light)
    • Ceiling/Ambient Light Rejecting (CLR®/ALR) 1.5 Gain Front projection material
    • Multi-layer matrix uses reflective and absorbent micro-particles eliminate up to 75% of ambient light
    • High-contrast diffusion layers (Enhance black level dynamic range and color saturation)
    • Angular reflectivity negates light scatter artifacts and is ideal for residential or commercial applications
  • 4K Ultra HD, Active 3D, and HDR Ready
  • ISF Certified for Accurate Color Reproduction

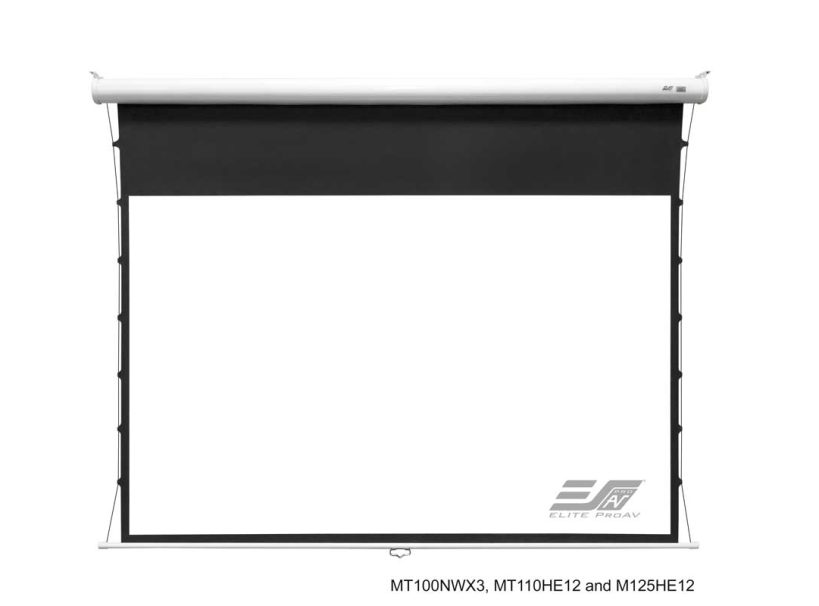

  • Black masking borders enhance picture contrast and absorb projector overshoot
  • Available in the following diagonal sizes and aspect ratios
    • 106″, 125 and 140″ in 16:9 – CineGrey 5D® (black housing)
    • 100” and 113” in 16:10 – CineWhite® UHD-B (white housing)

Design and Installation

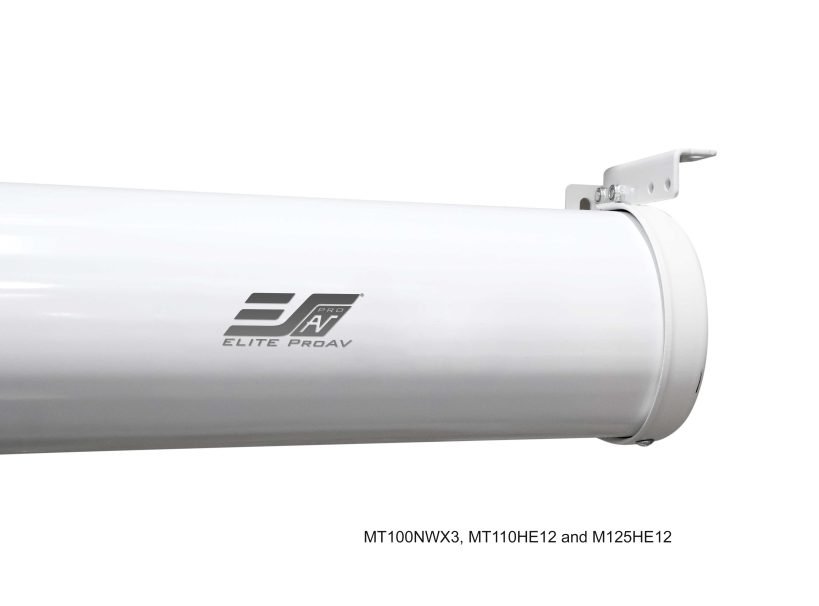

  • Premium grade white-enameled aluminum housing

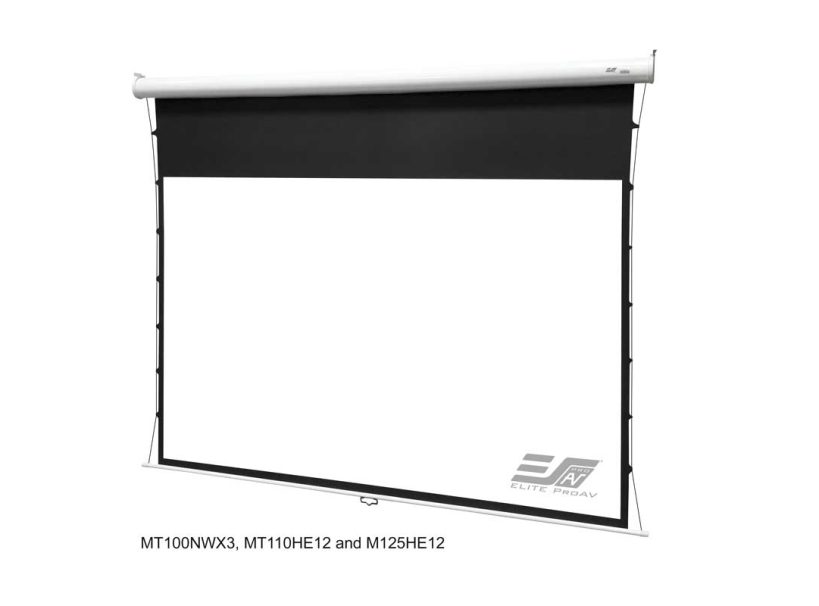

  • Tab-tension design helps maintain a flat and taut projection surface

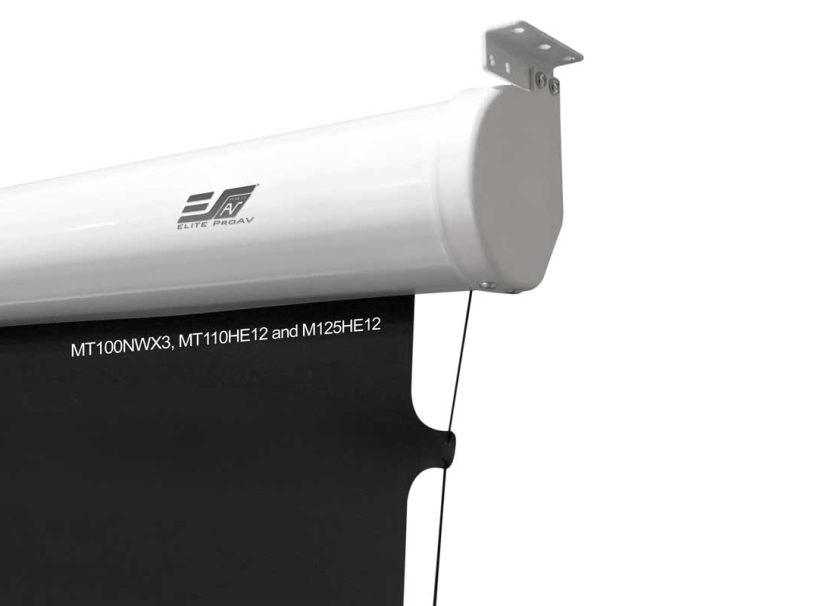

  • Floating brackets permit a sliding flush wall installation
  • Includes eyebolts for a suspended ceiling installation
  • Integrated SRM (Slow Retract Mechanism) enables hands-free operation once the screen is released
  • Auto-locking mechanism provides variable height settings

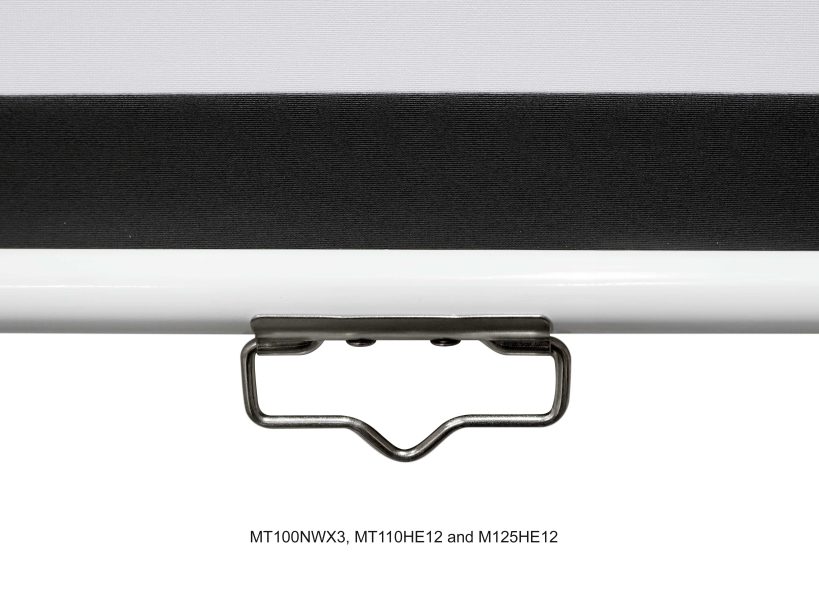

  • Includes screen lanyard for easy operation and high wall/ceiling installations

Quality and Reliability

  • 5-Year Premium Warranty by Elite Screens, an ISO9001 manufacturer since 2004
  • Lifetime Tech Support by Elite ProAV’s Professional Service Team through Email, Web Chat or Toll-Free Phone Call
