Electric Screens - Wall/Ceiling

Planate Tab-Tension Series

The Planate Tab-Tension Projector Screen combines the level flatness needed for ultra-short throw projectors with the convenient versatility of an electric motorized roll up screen. It features Elite’s award-winning CineWhite® screen material in a tab-tensioned design. This dynamic 1.1 gain material accommodates a wide viewing angle with wide diffusion uniformity yet maintains astonishing flatness regardless of its roll-up format. Standard features include a wireless 5-12 volt trigger, IR/RF remote control package, and a detachable manual keypad switch.

Where to Buy


Screen Material

  • CineWhite® 1.1 Gain (Tensioned Matte White) front projection surface
  • Wide diffusion uniformity allows viewers to enjoy a clear bright picture from any angle
  • Compatible with ultra/short and standard throw projectors
  • 4-sided black masking borders enhances picture contrast and absorbs projector overshoot
  • Black backing eliminates light penetration for a sharper, brighter, and clearer picture
  • Available in 100”/106”/110”/120”/135” and 150” in 16:9 HDTV aspect ratio


Design and Installation

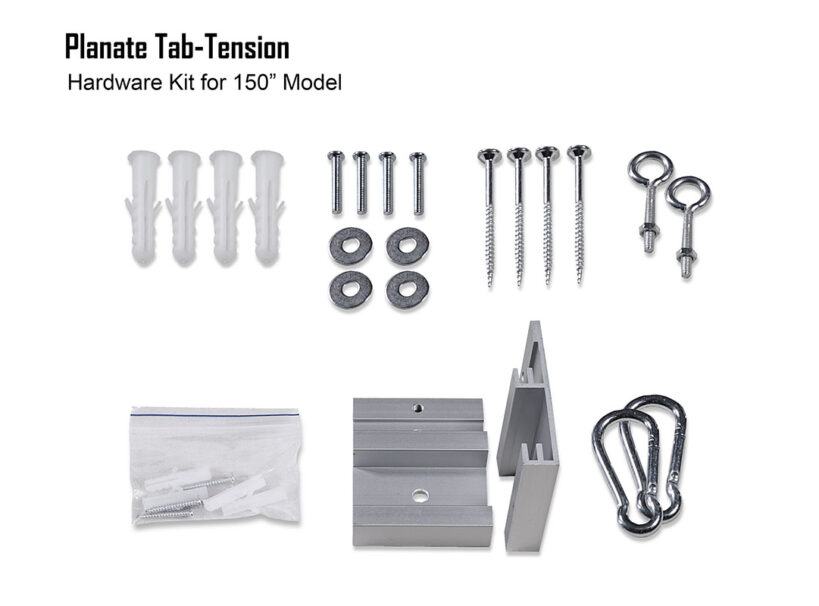

  • Floating wall/ceiling mount brackets allow easy alignment for wood stud installation
  • Tab-tension provides a flat and taut projection surface
  • Streamlined aluminum black casing is moisture resistant
  • Suspended ceiling installation capable
  • Ships fully assembled with standard 3-prong power cable ready for operation


Control System

  • Internal Radio Frequency/Infrared receivers with IR, RF remotes included
  • Detachable 3-way wall switch keypad for UP/STOP/DOWN manual operation
  • Wireless 5-12 volt projector trigger included (works with Radio Frequency remote)
  • Optional in-wall UP/DOWN switch, Part# ZIW-W – Sold separately
  • Optional universal projector trigger, Part# ZU12V (for projector’s with not trigger output) – Sold separately


Quality and Reliability

  • Fast tubular motor allows swift operation with a superior weight tolerance and operational lifespan
  • 5-year manufacturer warranty
  • Lifetime Tech Support by Elite’s professional Service Team through Email, Web Chat or Toll-Free Phone Call
