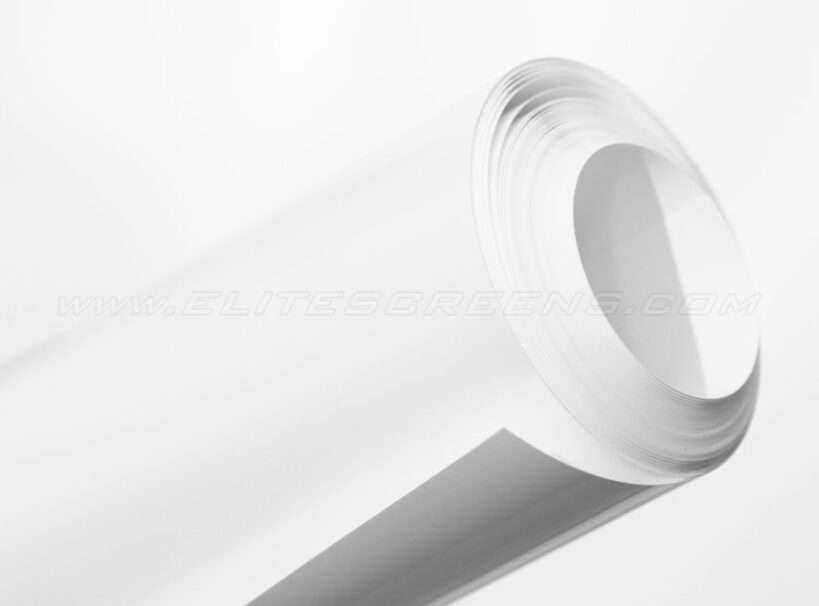

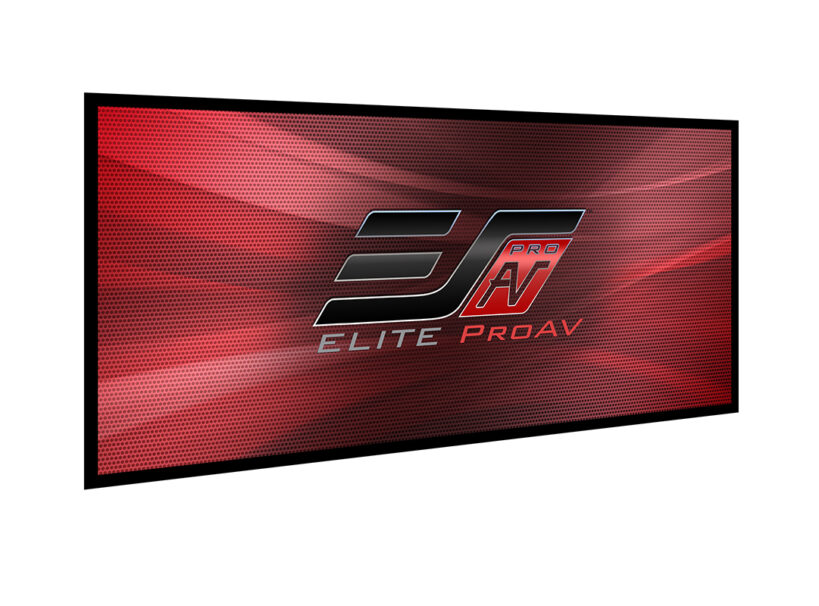

Convert entire walls into a dry-erase whiteboard projection screen: The Insta-DE 2aF is a self-adhesive wall covering film material that instantly converts entire walls into a professional Dry-Erase Whiteboard / Projection Screen surface for use with standard, short, or ultra-short throw projectors. It is made with our award-winning and GREENGUARD® certified VersaWhite “whiteboard-projection screen”, which is coated with a long lasting anti-scratch surface for daily dry erase whiteboard usage. The Insta-DE 2aF has a special anti-reflection diffusion layer to provide a wide viewing angle for projection applications. It combines the need of both chalkboard and drop down projection screen into one simple low cost solution.
It also includes a frame border and a pen tray to further enhance and complement your installation.
Screen Material
- Award winning and GREENGUARD® certified VersaWhite material
- 1.1 gain with 180 degree wide viewing angle
- 4K Ultra HD, Active 3D, and HDR Ready
- Available in the following sizes:
- 114″ diagonal
- 5’x10′
- 5’x20′
Design and Installation
- Instantly converts flat surfaces/walls into a dry-erase whiteboard projection screen
- Perfect dry-erase and projection solution for today’s short throw projectors
- Special anti-scratch layer to ensure long use as a projection screen and dry-erase product
- Anti-reflection diffusion surface eliminates glare and hot-spot while using a projector
- Ideal and effective instructional presentation tool in the classroom, boardroom, and training facilities

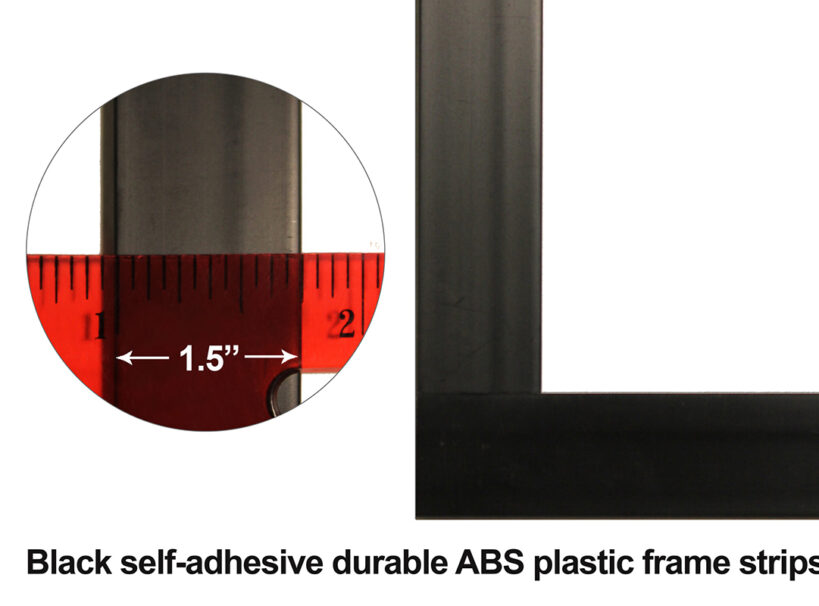

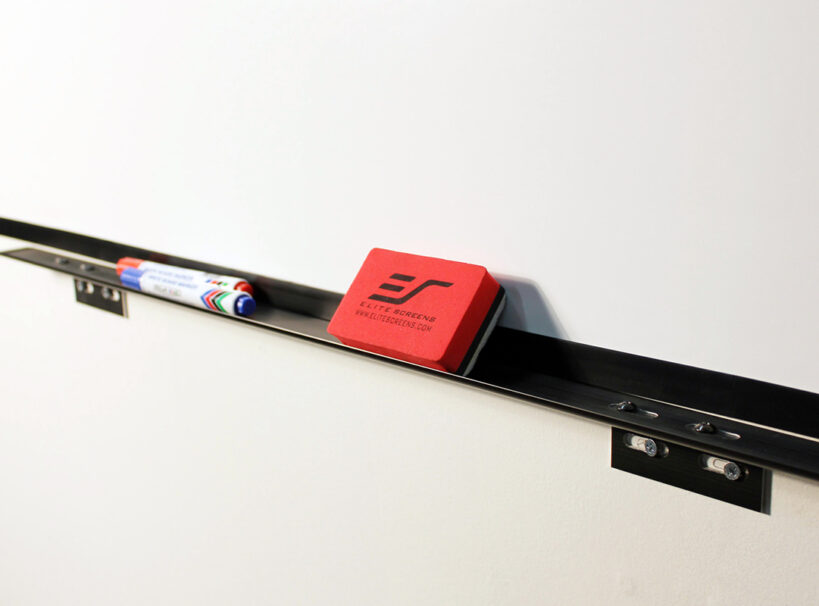

- Includes dry-erase pens, eraser, self-adhesive ABS frame border, and Pen Tray
Quality & Reliability
- GREENGUARD® and GREENGUARD® Gold Certified
- 5-year manufacturer’s warranty
Dimensions
The listed measurements are for general reference only. Please contact EliteProAV™ to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification. Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. EliteProAV™ will not be held responsible or be otherwise liable for faulty installations.
Decoding the Model Number
Model Number = IWB5X10W2AF
IWB = Insta-DE (instant white board)
5X10 = Screen Size (H ft x L ft)
W = Matte White screen material
2 = Version 2
a = self-adhesive backing
F = Frame included
Dimensions Table
Model | Diag. Size | Aspect Ratio | View Area (HxW) | Screen Material | Case Color | Gain | View Height (A) | View Width (B) | Frame Height (A1) | Frame Width (B1) | Tray Width (B2) | D | D1 |
IWB5X10W2AF | 5’X10′ | N/A | 59.8″x119.6″ | VersaWhite | Black (Border) | Gain 1.1 | 59.8 | 119.6 | 59.8 | 121.1 | 50.8 | 0.1 | 1.8 |
IWB5X20W2AF | 5’X20′ | N/A | 59.8″x219.6″ | VersaWhite | Black (Border) | Gain 1.1 | 59.8 | 219.6 | 59.8 | 221.1 | 50.8 | 0.1 | 1.8 |
IWB114XW2AF | 114″ | 16:10 | 55.9″x99.4″ | VersaWhite | Black (Border) | Gain 1.1 | 55.9 | 99.4 | 55.9 | 100.9 | 50.8 | 0.1 | 1.8 |
Packaging Dimensions
Diag. Size | Aspect Ratio | N.W. (lbs.) | G.W. (lbs.) | N.W. (Kgs) | G.W. (Kgs) | Packaging Dimensions (LxWxH) /Inches |
114″ | 16:10 | 4.0 lb | 9.5 lb | 1.8 kg | 4.3 kg | 72.4″x5.1″x5.1″ |
5’X10′ | N/A | 4.7 lb | 10.3 lb | 2.1 kg | 4.7 kg | 72.4″x5.1″x5.1″ |
5’X20′ | N/A | 7.3 lb | 13.2 lb | 3.3 kg | 6.0 kg | 72.4″x5.1″x5.1″ |
