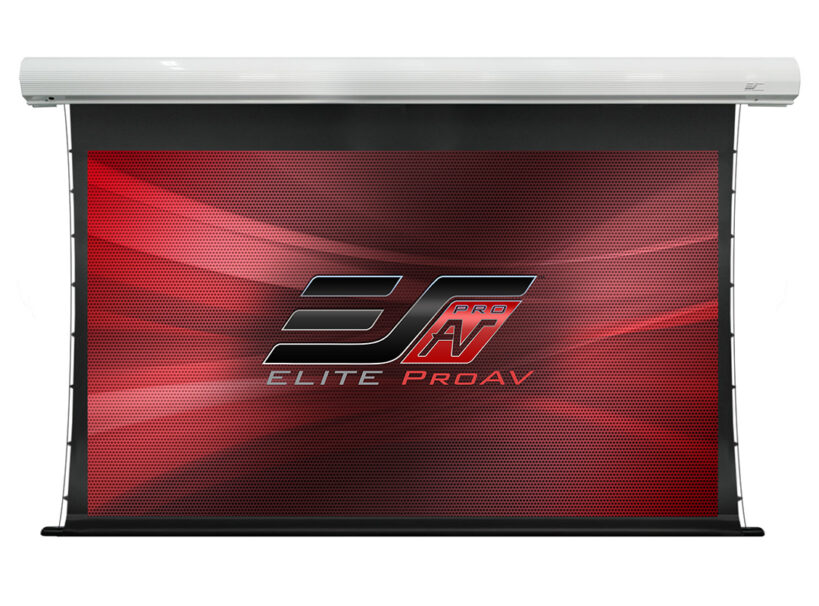

Saker Tab-Tension Series

The Saker Tab-Tension Series includes a tab-tension system with MaxWhite® Fiberglass material to maintain flatness all across the projection surface. Standard features include a wireless 5-12 volt trigger, IR/RF remote control package, and a detachable manual keypad switch.

Available in the following front projection materials

Material Name Gain Viewing Angle Description
MaxWhite®
Fiberglass (FG)

 1.1 180° MaxWhite® Fiberglass (FG) is fiberglass backed for added stiffness which provides the flattest possible non-tensioned screen surface with universal applications.  This material provides wide viewing uniform diffusion while giving precise definition, color reproduction and black & white contrast.
AcousticPro UHD 1.0 180° AcousticPro UHD is an acoustically transparent front projection screen. It is 4K ultra HD ready and moire-free from visual artifacts. Recommended for rooms with controlled ligthing. Works with Standard, 1080P/4K projectors.




Where to Buy

Description

Screen Material

  • MaxWhite® Fiberglass (FG) 1.1 Gain
  • 180° wide viewing angle
  • Active 3D, 4K Ultra HD, and HDR Ready
  • Not compatible with Ultra/Short-throw Projectors
  • Standard black masking borders and black backing
  • Available in the following range of diagonal sizes:
    • 100″ and 120″ in 4:3 format
    • 84″ – 180″ in 16:9 format
    • 106″ and 120″ in 16:10 format



Design and Installation

  • Flush hidden wall mounts allow screen to slide horizontally for proper centering
  • Tab-tension design helps maintain a flat projection surface
  • Curved aluminum enamel white case with parallel grooves
  • Extra top black masking border for high ceiling installations
  • Plug & Play ready, no hardwire installation required
  • Mounting hardware kit included for wall or ceiling installation



Control System

  • Internal Radio Frequency/Infrared receivers with IR, RF remotes included
  • Detachable 3-way wall switch keypad for UP/STOP/DOWN manual operation
  • Wireless 5-12 volt trigger included
  • RJ45 port allows 3rd party control system integration

Quality and Reliability

  • Silent operation synchronous motor and low power consumption
  • Flame Retardant: Complies with NFPA 701 Standards (MaxWhite FG & AcousticPro UHD)
  • GREENGUARD® and GREENGUARD® Gold Certified (MaxWhite FG)
  • 5-year manufacturer’s warranty

The listed measurements are for general reference only. Please contact EliteProAV™ to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification. Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. EliteProAV™ will not be held responsible or be otherwise liable for faulty installations.

Decoding the Model Number
Model Number = SKT100XHW-E12
SKT = Saker Tab-Tensioned Series
100 = Nominal Diagonal Size
X or N = White case/housing
H = HDTV 16:9 aspect ratio
(V = 4:3 / X = 16:10 / S = 1:1 / C = 2.35:1)
W = Matte White screen material
E12 = 12" of top black masking border/leader

Dimensions Table

Model Numbers
Diag. Size
Aspect Ratio
View Area (HxW)
Screen Material
Case Color
Gain
Overall L. with Bracket (A)
View Width (A1)
End Cap Screw Hole Distance
(A2)
Overall L. w/out Bracket (A3)
Ceiling Bracket Hole Distance (A4)
Screen Width (A5)
Weight Bar Length (A6)
L/R Border (A7)
Overall H. w/ Ceiling  Bracket (B)
View Height (B1)
Screen Height (B2)
Top Border (B3)
Bottom Border (B4)
End cap H. w/ Bracket (B5)
End Cap W. w/ Bracket (C)
End Cap H. w/ Bracket (C1)
C2
C3
SKT100XVW-E10
100"
4:3
60.0"x80.0"
MaxWhite® Fiberglass
White
Gain 1.1
98.4
80.0
97.6
96.6
65.1
89.4
94.0
4.7
76.6
60.0
72.4
10.0
2.4
3.9
4.0
4.3
1.4
0.9
SKT120XVW-E9
120"
4:3
72.0"x96.0"
MaxWhite® Fiberglass
White
Gain 1.1
116.2
96.0
115.4
114.4
82.9
105.4
111.8
4.7
87.6
72.0
83.4
9.0
2.4
3.9
4.0
4.3
1.4
0.9
SKT84XHW-E12
84"
16:9
41.2"x73.2"
MaxWhite® Fiberglass
White
Gain 1.1
91.8
73.2
91.0
90.0
58.5
81.1
87.4
3.9
59.8
41.2
55.6
12.0
2.4
3.9
4.0
4.3
1.4
0.9
SKT100XHW-E12
100"
16:9
49.0"x87.2"
MaxWhite® Fiberglass
White
Gain 1.1
105.7
87.2
105.0
103.9
72.4
95.0
101.4
3.9
67.6
49.0
63.4
12.0
2.4
3.9
4.0
4.3
1.4
0.9
SKT110XHW-E24
110"
16:9
53.9"x95.9"
MaxWhite® Fiberglass
White
Gain 1.1
116.2
95.9
115.4
114.4
82.9
105.3
111.8
4.7
84.6
53.9
80.3
24.0
2.4
3.9
4.0
4.3
1.4
0.9
SKT120XHW-E20
120"
16:9
58.8"x104.6"
MaxWhite® Fiberglass
White
Gain 1.1
124.8
104.6
124.1
123.0
91.5
114.1
120.5
4.7
85.4
58.8
81.2
20.0
2.4
3.9
4.0
4.3
1.4
0.9
SKT135XHW-E6
135"
16:9
66.2"x117.7"
MaxWhite® Fiberglass
White
Gain 1.1
139.4
117.7
138.6
137.6
106.1
127.1
135.0
4.7
78.8
66.2
74.5
6.0
2.4
3.9
4.0
4.3
1.4
0.9
SKT150XHW-E6
150"
16:9
73.5"x130.7"
MaxWhite® Fiberglass
White
Gain 1.1
153.1
130.7
151.7
150.4
118.9
139.4
148.0
4.3
86.8
73.5
81.9
6.0
2.4
4.6
4.6
4.9
1.4
0.9
SKT165XHW-E6
165"
16:9
80.9"x143.8"
MaxWhite® Fiberglass
White
Gain 1.1
166.4
143.8
165.0
163.6
132.1
153.3
161.3
4.7
94.2
80.9
89.3
6.0
2.4
4.6
4.6
4.9
1.4
0.9
SKT106NXW-E12
106"
16:10
56.2"x89.9"
MaxWhite® Fiberglass
White
Gain 1.1
108.3
89.9
107.5
106.5
75.0
97.8
103.9
3.9
74.8
56.2
70.6
12.0
2.4
3.9
4.0
4.3
1.4
0.9
SKT120NXW-E12
120"
16:10
63.6"x101.8"
MaxWhite™ Fiberglass
White
Gain 1.1
121.9
101.8
121.1
120.1
88.6
111.2
117.5
4.7
82.2
63.6
78.0
12.0
2.4
3.9
4.0
4.3
1.4
0.9
SKT100UH-E24-AUHD
100"
16:9
49.0"x87.2"
AcousticPro UHD
Black
Gain 1.0
105.7
87.2
105.0
103.9
72.4
95.0
101.4
3.9
79.6
49.0
75.4
24.0
2.4
3.9
4.0
4.3
1.4
0.9
SKT110UH-E24-AUHD
110"
16:9
53.9"x95.9"
AcousticPro UHD
Black
Gain 1.0
116.2
95.9
115.4
114.4
82.9
105.3
111.8
4.7
84.6
53.9
80.3
24.0
2.4
3.9
4.0
4.3
1.4
0.9
SKT120UH-E20-AUHD
120"
16:9
58.8"x104.6"
AcousticPro UHD
Black
Gain 1.0
124.8
104.6
124.1
123.0
91.5
114.1
120.5
4.7
85.4
58.8
81.2
20.0
2.4
3.9
4.0
4.3
1.4
0.9
SKT135UH-E12-AUHD
135"
16:9
66.2"x117.7"
AcousticPro UHD
Black
Gain 1.0
140.0
117.7
138.6
137.3
105.8
127.1
134.9
4.7
85.5
66.2
80.6
12.0
2.4
4.6
4.6
4.9
1.4
0.9
SKT150UH-E12-AUHD
150"
16:9
73.5"x130.7"
AcousticPro UHD
Black
Gain 1.0
153.1
130.7
151.7
150.4
118.9
140.2
148.0
4.7
92.8
73.5
87.9
12.0
2.4
4.6
4.6
4.9
1.4
0.9
SKT180UH-E3-AUHD
180"
16:9
88.3"x156.9"
AcousticPro UHD
Black
Gain 1.0
179.3
156.9
177.8
176.5
145.0
167.1
174.1
5.1
98.5
88.3
93.6
3.0
2.4
4.6
4.6
4.9
1.4
0.9

Saker Tab-Tension Series Line Drawing

Packaging Dimensions

Model Numbers
Diag. Size
Aspect Ratio
N.W. (lbs.)
G.W. (lbs.)
N.W. (kgs)
G.W. (Kgs)
Packaging Dimensions (LxWxH)
SKT100XVW-E10
100"
4:3
30.0 lb
38.7 lb
13.6 kg
17.6 kg
102.6"x6.7"x6.3"
SKT120XVW-E9
120"
4:3
33.8 lb
43.0 lb
15.3 kg
19.5 kg
122.0"x6.7"x6.3"
SKT84XHW-E12
84"
16:9
24.5 lb
32.3 lb
11.1 kg
14.7 kg
98.0"x6.7"x6.3"
SKT100XHW-E12
100"
16:9
27.7 lb
36.3 lb
12.6 kg
16.5 kg
111.4"x6.3"x6.7"
SKT110XHW-E24
110"
16:9
32.9 lb
42.1 lb
14.9 kg
19.1 kg
122.0"x6.7"x6.3"
SKT120XHW-E20
120"
16:9
35.5 lb
44.8 lb
16.1 kg
20.3 kg
129.7"x6.7"x6.3"
SKT135XHW-E6
135"
16:9
38.4 lb
48.1 lb
17.4 kg
21.8 kg
144.9"x6.7"x6.3"
SKT150XHW-E6
150"
16:9
56.6 lb
76.4 lb
25.7 kg
34.7 kg
155.9"x8.5"x7.9"
SKT165XHW-E6
165"
16:9
61.5 lb
82.3 lb
27.9 kg
37.3 kg
166.5"x8.5"x7.9"
SKT106NXW-E12
106"
16:10
29.5 lb
37.9 lb
13.4 kg
17.2 kg
114.3"x6.7"x6.3"
SKT120NXW-E12
120"
16:10
34.3 lb
43.4 lb
15.6 kg
19.7 kg
127.6"x6.7"x6.3"
SKT100UH-E24-AUHD
100"
16:9
28.6 lb
37.6 lb
13.0 kg
17.1 kg
111.8"x6.7"x6.3"
SKT110UH-E24-AUHD
110"
16:9
33.2 lb
42.6 lb
15.1 kg
19.3 kg
122.0"x6.7"x6.3"
SKT120UH-E20-AUHD
120"
16:9
35.4 lb
45.1 lb
16.1 kg
20.5 kg
129.7"x6.7"x6.3"
SKT135UH-E12-AUHD
135"
16:9
51.7 lb
70.7 lb
23.5 kg
32.1 kg
142.9"x8.5"x7.9"
SKT150UH-E12-AUHD
150"
16:9
57.0 lb
74.4 lb
25.9 kg
33.8 kg
156.3"x8.5"x7.9"
SKT180UH-E3-AUHD
180"
16:9
66.6 lb
88.1 lb
30.2 kg
40.0 kg
182.3"x8.5"x7.9"
