AcousticPro UHD

The AcousticPro UHD (ultra-high definition) is a moiré-free self-supported acoustically transparent front projection screen material.  The dense synthetic weave is compatible with Ultra-High Definition/4K resolutions while mitigating light penetration for a brighter picture. The AcousticPro UHD design maximizes sound penetration with minimal attenuation without compromising picture quality. The AcousticPro UHD material’s wide diffusion uniformity offers a broad viewing angle with superb picture quality across the entire surface.This provides equal brightness levels on or off axis.

“Speaking of “observing”, the Electric125H-AUHD performed admirably across a diversity of content and at all hours of day and night; its ambient light suppression was top-notch.” – Brian Dipert, EDN Network

Elite ProAV Series: Pro Frame Acoustic Series


Where to Buy

Description

  • Gain: 1.0
  • Viewing Angle: 180° (90°L/R)
  • Moiré-free
  • Wide diffusion uniformity – maintains luminance levels throughout entire surface
  • Mildew Resistant
  • 4K UHD, Active 3D, and HDR ready
  • Mean Attenuation: -2.36dB
  • Flame Retardant: Complies with NFPA 701 Standards



Surface Characteristics and Specs

Material Name
AcousticPro UHD
Material Thickness
0.64mm
Material Spool Length (swatch height)
Short 1.6M | Medium 2.0M | Tall 2.5M
Material Composition
Synthetic (plain woven) AT projection fabric
Average size of weave perforations
0.32 mm (Avg.)
Opening Rate
0.0
Flame Resistant
Complies with NFPA 701 standards

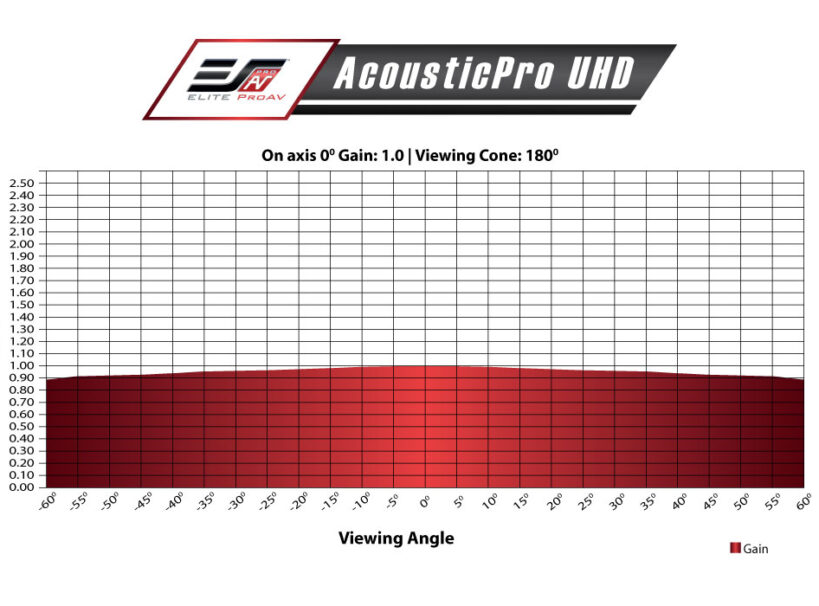

On-axis Gain
1.0
Viewing Angle
180°
Recommended Minimum Viewing Distance
1.5x image width
Ambient Light Resistance
Non ALR Material
Active 3D & 4K Ultra HD Ready
Yes
Acoustic Transparency (Mean Attenuation)
-2.36 dB



Sound Transparency

Overall Response Plot at 0° Angle of Incidence



Tabular Response at 0° Angle of Incidence

Avg. Gain dB Min. Gain dB Max. Gain dB Band
-1.5 -1.7 -1.4 100Hz- 500Hz
-1.7 -1.8 -1.6 500Hz- 1000Hz
-2.3 -3.4 -1.8 1000Hz- 10000Hz
-4.0 -4.6 -3.4 10000Hz- 18000Hz

Tabular Response at +/- 15 ° Angle of Incidence

Angle Min. Variation (dB) Max. Variation (dB) Band
Horizontal +/-1.5° -0.5 -1.7 100Hz- 1000Hz
Horizontal +/-1.5° -0.4 -2.2 10000Hz- 18000Hz
Vertical +/-1.5° -0.1 -1.4 10Hz- 10000Hz
Vertical +/-1.5° -0.2 -3.0 10000Hz- 18000Hz
