Tension Pro Series

EliteProAV’s Tension Pro Series is a large-venue motorized retractable projector screen. It features superior flatness using a tab-tensioned system design and is available in sizes from 200″ – 300″ in a 16:9 (HDTV) aspect ratio. Standard accessories include IR/RF remote controls, and a 12-volt trigger to synchronize the screen’s operation with the projector’s power cycle. The Tension Pro is ideal for projection presentations in auditoriums, gymnasiums, or any other large venue indoor environments.

Description

Screen Material

  • CineWhite® UHD 1.15 Gain (tensioned matte white) front projection surface
  • ISF Certified for accurate color points, color temperature and dynamic range
  • Wide diffusion uniformity allows viewers to enjoy a clear bright picture from any angle
  • 4K/8K Ultra HD and HDR Ready
  • Standard black masking borders absorb projector overshoot while enhancing visual contrast
  • Available in the following diagonal sizes:
    •  200”, 235”, 250″, and 300″ in 16:9 aspect ratio

Control System

  • Internal Radio Frequency (RF) /Infrared (IR) receivers with remotes included
  • Infrared IR extended “eye” sensor – ideal for concealed installations
  • 12-volt projector trigger included synchronizes the screen’s UP/DOWN operation with the projector’s power cycle

Design and Installation

  • Heavy-duty aluminum casing
  • Tab-tensioned design provides a flat and taut projection surface ideal for use with standard or (ultra) short throw projectors
  • Dual wall/ceiling mounting points on 200”, 235”, and 250” models

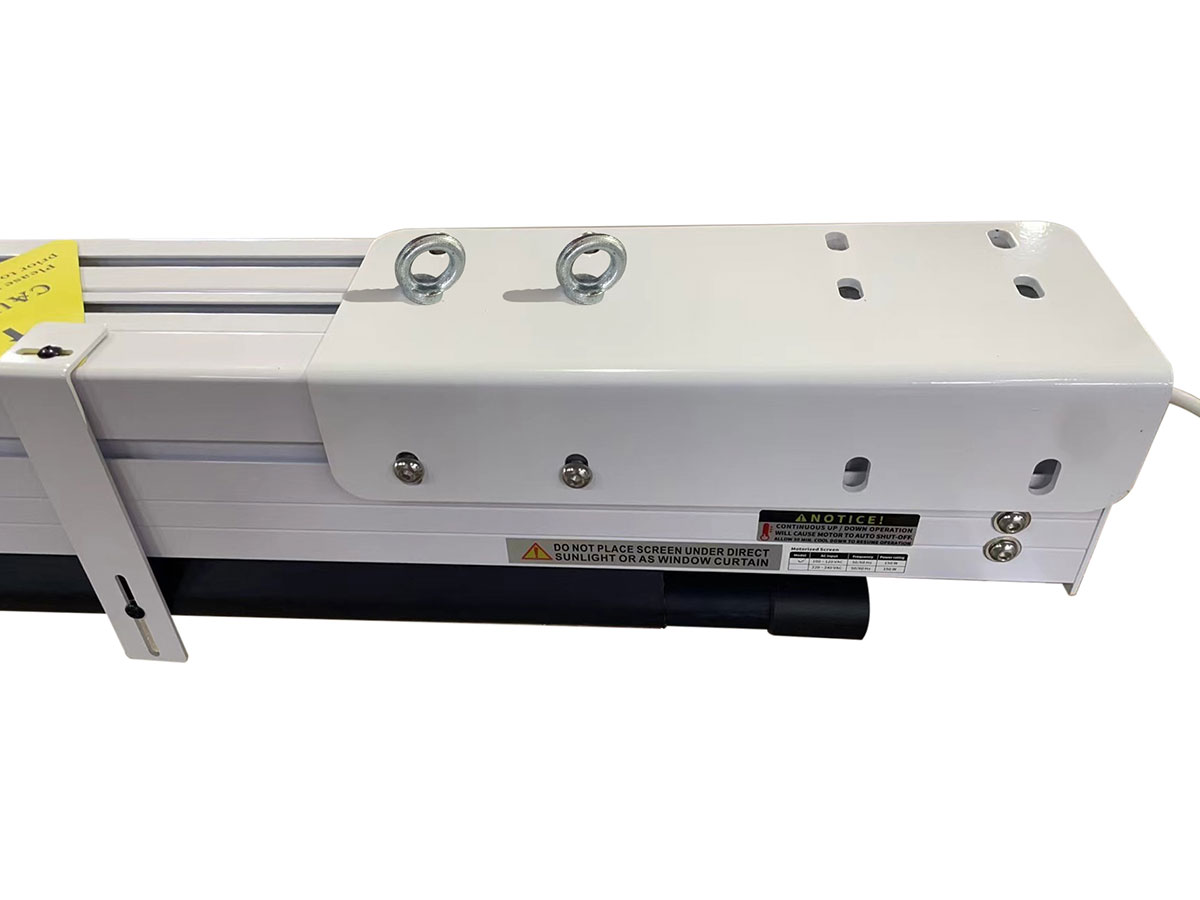

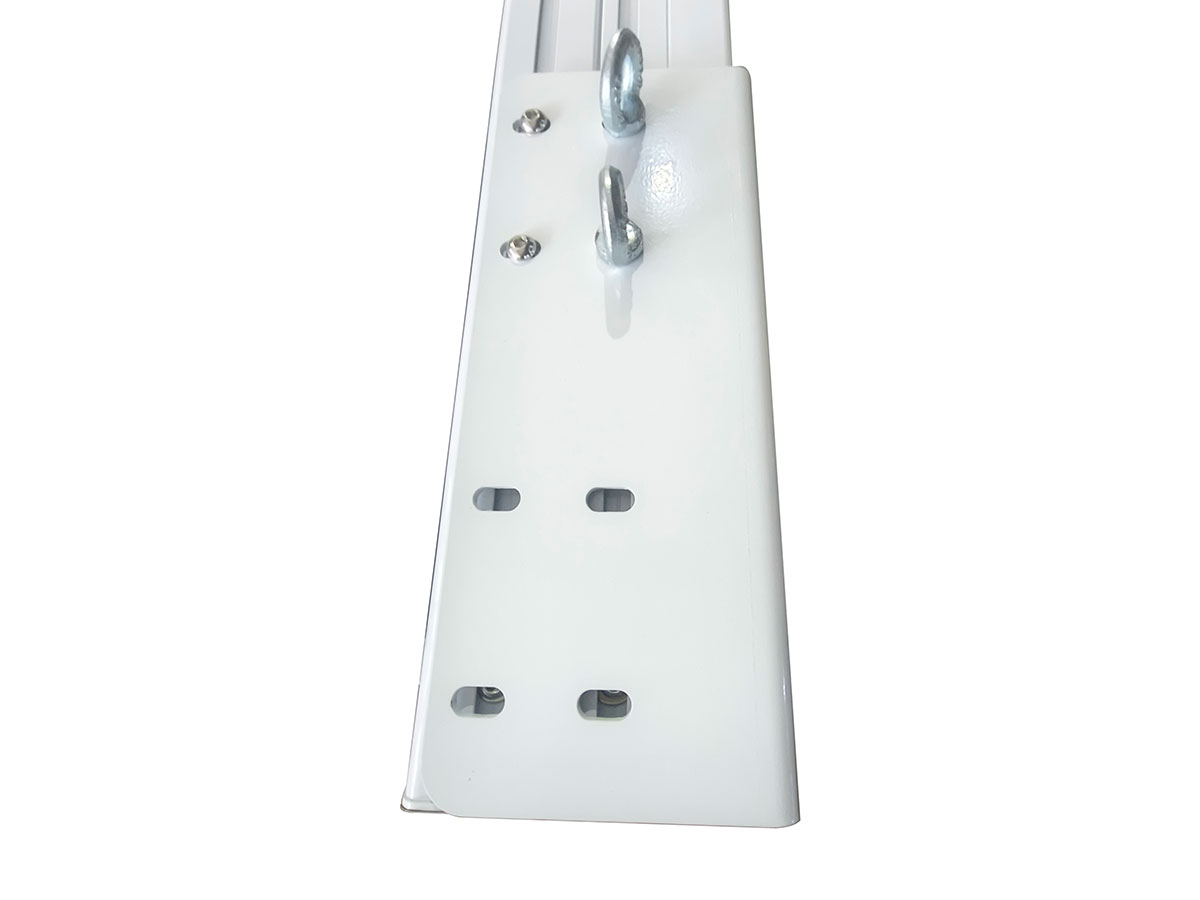

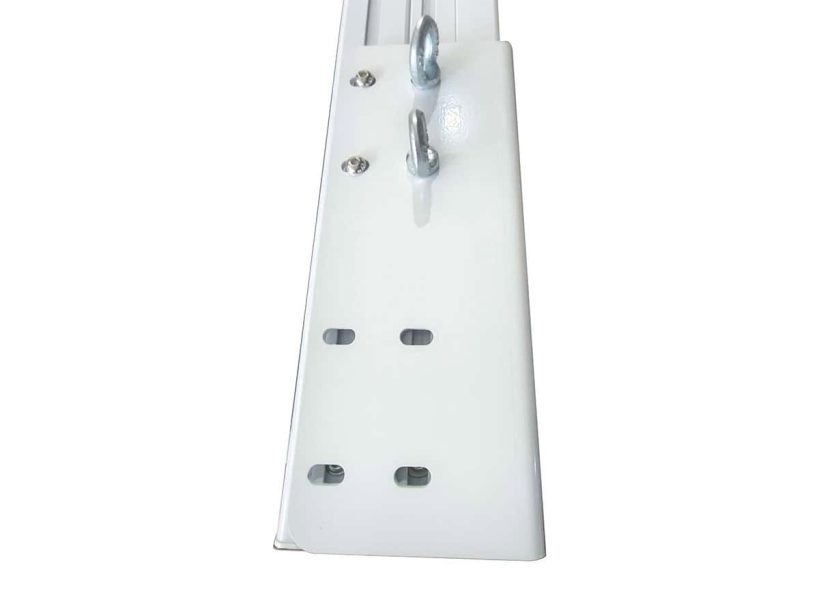

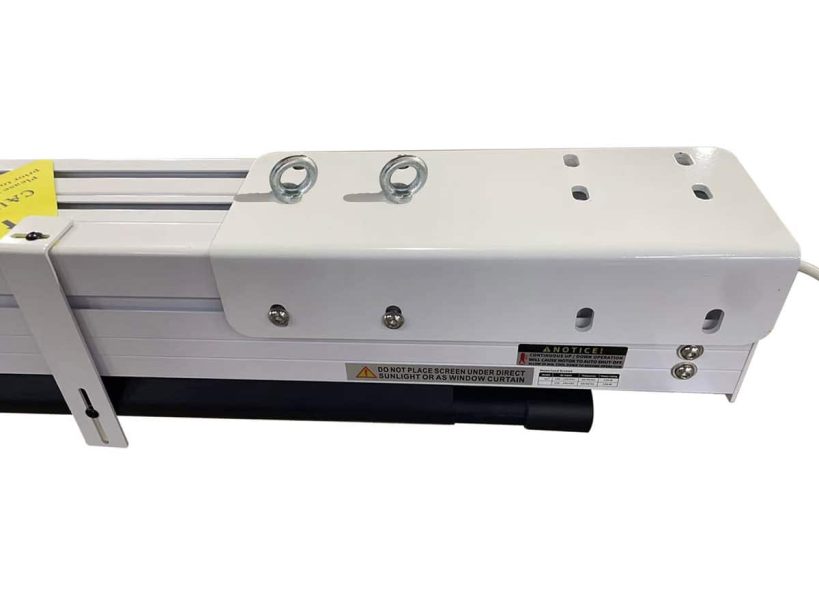

  • Ring bolts included on metal casing for suspended ceiling installation (300” model only)
  • Comes fully assembled for plug & play operation with no tools or assembly required.

Quality and Reliability

  • Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
  • 5-year premium warranty

The listed measurements are for general reference only.  Please contact EliteProAV™ to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification.  Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. EliteProAV™ will not be held responsible or be otherwise liable for faulty installations.

Decoding the Model Number
Model Number = TP200XHW2
TP = TensionPro Series
200 = Nominal Diagonal Size
X = White case/housing (U = Black case)
H = HDTV 16:9 aspect ratio
W = Matte White screen material
2 = Version 2

Dimensions Table (200"/235"/250" Diagonal Models)

Model Number
Diag. Size
Aspect Ratio
View Area (HxW)
Screen Material
Case Color
Gain
Overall Length (A)
Length Between Mounting
Brackets/Eyebolts (A1)
Screen Width (A2)
View Width (A3)
Left/Right Black
Masking Width (A4)
Weight Bar Length (A5)
Overall Height (B)
Casing Height (B1)
Top Black
Masking Length (B2)
View Height (B3)
Bottom Black
Masking Length (B4)
Screen Height (B5)
Casing Width (C)
Weight Bar
Thickness (C1)
Distance From Material
To Back Of Casing
TP200XWH2
200"
16:9
98.1"x174.3"
CineWhite® UHD
White
Gain 1.1
192.0
191.7
178.3
174.3
2.0
189.6
119.8
7.0
11.8
98.1
3.1
113.0
5.4
1.3
0.9
TP235XWH2
235"
16:9
115.2"x204.8"
CineWhite® UHD
White
Gain 1.1
223.1
222.8
208.7
204.8
2.0
218.0
137.3
8.1
11.8
115.2
3.1
130.2
6.2
1.3
0.9
TP250XWH2
250"
16:9
122.6"x217.9"
CineWhite® UHD
White
Gain 1.1
236.2
235.9
221.8
217.9
2.0
231.1
144.6
8.1
11.8
122.6
3.1
137.5
6.2
1.3
0.9

Tension Pro Line Drawing

Dimensions Table (300" Diagonal Models)

Model Number
Diag. Size
Aspect Ratio
View Area (HxW)
Screen Material
Case Color
Gain
Overall Length (A)
Length Between Mounting
Brackets/Eyebolts (A1)
Screen Width (A2)
View Width (A3)
Left/Right Black
Masking Width (A4)
Weight Bar Length (A5)
Overall Height (B)
Casing Height (B1)
Top Black
Masking Length (B2)
View Height (B3)
Bottom Black
Masking Length (B4)
Screen Height (B5)
Casing Width (C)
Weight Bar
Thickness (C1)
Distance From Material
To Back Of Casing
Top Of Casing
To Top Of Eyeblot
Distance
Between Eyebolts
TP300UWH2
300"
16:9
147.0"x261.5"
CineWhite® UHD
Black
Gain 1.1
296.8
287.6
265.4
261.5
2.0
276.2
169.0
8.6
7.9
147.0
3.1
158.1
10.2
1.3
1.8
1.4
4.7

Tension Pro 300 Line Drawing

Packaging Dimensions

Model Number
Diag. Size
Aspect Ratio
N.W. (lbs.)
G.W.(lbs.)
N.W.(Kgs)
G.W.(Kgs)
Packaging Dimensions (LxHxW)
TP200XWH2
200"
16:9
116.8 lb
132.3 lb
53.0 kg
50.0 kg
197.2"x12.2"x11.0"
TP235XWH2
235"
16:9
160.9 lb
246.9 lb
73.0 kg
112.0 kg
228.7"x12.6"x11.8"
TP250XWH2
250"
16:9
169.8 lb
350.5 lb
77.0 kg
159.0 kg
240.9"x12.6"x11.8"
TP300UWH2
300"
16:9
330.7 lb
440.9 lb
150.0 kg
200.0 kg
295.7"x19.7"x16.1"
