Saker Tab-Tension ALR Series

EliteProAV’s Saker Tab-Tension ALR  is 1.5 gain ambient light rejecting (ALR) projector screen that comes in Elite’s Saker electric “roll-up” configuration.  ALR projection screens enhance picture quality with brighter imagery and more defined contrast levels. However, its greatest value comes from its ability to counter the “wash out” effect of ambient light. The material is also ISF certified for its ability to achieve D65 color neutrality, superb contrast and dynamic range bringing a world class performance to any installation.

A complete integration kit along with full IR/RF control package is included as well as a 5-12v trigger to coordinate the screen’s drop and rise with the projector’s power cycle. All this is included in a stylish arcuate-profiled aluminum casing with white enamel coating and flush-wall floating brackets.


Where to Buy

Description

Screen Material

  • CineGrey 5D® 1.5 Gain Ambient Light Rejecting (ALR) projector screen
  • ISF Certified – D65 color neutrality, superb contrast and dynamic range performance
  • Standard black masking borders absorb projector overshoot while enhancing perceived visual contrast
  • Active and Passive 3D compliant
  • 4K/8K Ultra HD and HDR Ready
  • Available in the following diagonal sizes:
    • 100″, 120″, 135″, and 150″ in 16:9 format

Design and Installation

  • Flush hidden wall mounts allow screen to slide horizontally for proper centering
  • Tab-tension design helps maintain a flat projection surface
  • Curved aluminum enamel white case with parallel grooves
  • Extra top black masking border for high ceiling installations
  • Plug & Play ready, no hardwire installation required

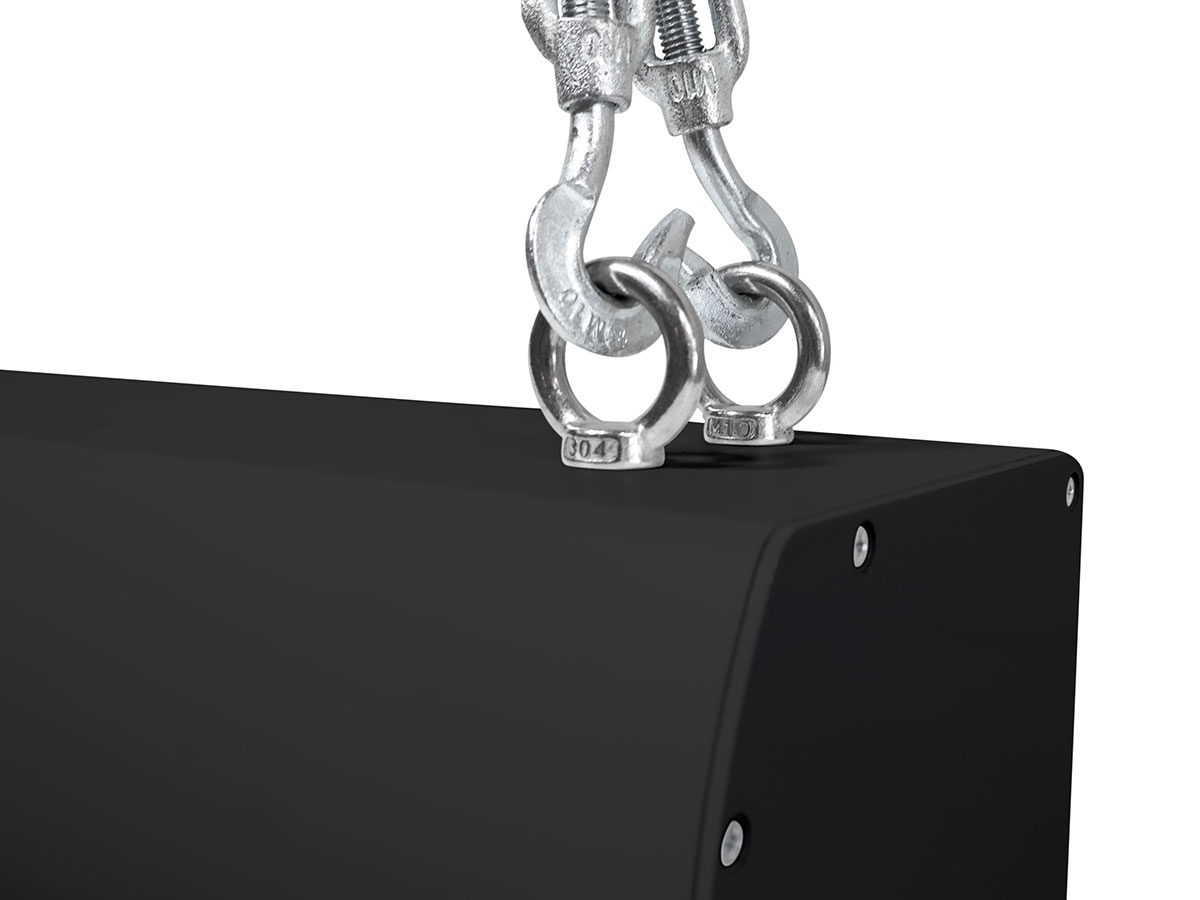

  • Mounting hardware kit included for wall or ceiling installation

Control System

  • Internal Radio Frequency/Infrared receivers with IR, RF remotes included
  • Detachable 3-way wall switch keypad for UP/STOP/DOWN manual operation
  • Wireless 5-12 volt trigger included
  • RJ45 port allows 3rd party control system integration

Quality and Reliability

  • Silent operation synchronous motor and low power consumption
  • 5-year manufacturer’s warranty

ALR Material Tip

Projector Placement for Angular-Reflective Screen

Notice to Installer:

Please use the following installation instructions to obtain superior optical performance from the ALR (Ambient Light Rejecting) Screen.

  • Angular-Reflective material is not compatible with ultra/short-throw projectors
  • Minimum lens throw ratio 1.5x image width
  • Ambient light must not come from the same direction as the projector



Since angular-reflective means that the projected image will reflect at the mirror-opposite angle, it is important to position the projector so that the viewer will get the best possible image.

  • Step 1: Establish the general “eye level” of the viewers
  • Step 2: Set the appropriate projection level
  • Step 3: Adjust the screen height level and projection angle

Input Angle (A) = Output Angle (B) aligns with the viewer’s angle

angular reflective screen material, ambient light rejecting screen, alr tip, angular reflective ambient light rejecting screen material

.

The listed measurements are for general reference only. Please contact EliteProAV™ to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification. Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. EliteProAV™ will not be held responsible or be otherwise liable for faulty installations.

Decoding the Model Number
Model Number = SKT100XHD5-E12
SKT = Saker Tab-Tensioned Series
100 = Nominal Diagonal Size
X = White case/housing
H = HDTV 16:9 aspect ratio
D5 = CineGrey 5D® screen material
E12 = 12" of top black masking border/leader

Dimensions Table

Model Numbers
Screen Diag.
Aspect Ratio
View Area (HxW)
Screen Material
Gain
Overall Length with Bracket (A)
View Width (A1)
End Cap Screw Hole Distance
(A2)
Overall Length without  Bracket (A3)
Ceiling bracket hole distance (A4)
Screen Width (A5)
Weight Bar Length (A6)
L/R black masking (A7)
Overall Height with ceiling  Bracket (B)
View Height (B1)
Screen Height (B2)
Top black masking (B3)
Bottom black masking (B4)
End cap Height with bracket (B5)
End cap Width with ceiling bracket (C)
End cap Height with ceiling bracket (C1)
Screen Material to Wall Distance (C2)
Weight bar diameter  (C3)
SKT100XHD5-E12
100"
16:9
49.0"x87.2"
CineGrey 5D®
Gain 1.5
108.7
87.2
107.3
106.0
74.5
97.4
103.6
5.1
68.3
49.0
63.4
12.0
2.4
4.6
4.6
4.9
1.4
0.9
SKT120XHD5-E12
120"
16:9
58.8"x104.6"
CineGrey 5D®
Gain 1.5
127.0
104.6
125.6
124.2
92.7
115.6
121.9
5.5
78.1
58.8
73.2
12.0
2.4
4.6
4.6
4.9
1.4
0.9
SKT135XHD5-E10
135"
16:9
66.2"x117.7"
CineGrey 5D®
Gain 1.5
140.0
117.7
138.6
137.3
105.8
128.7
134.9
5.5
83.5
66.2
78.5
10.0
2.4
4.6
4.6
4.9
1.4
0.9
SKT150XHD5-E6
150"
16:9
73.5"x130.7"
CineGrey 5D®
Gain 1.5
153.1
130.7
151.7
150.4
118.9
141.8
148.0
5.5
86.8
73.5
81.9
6.0
2.4
4.6
4.6
4.9
1.4
0.9

Saker Tab-Tension ALR Series Line Drawing

Packaging Dimensions

Model Numbers
Diag. Size
Aspect Ratio
N.W. (lbs.)
G.W. (lbs.)
N.W. (kgs)
G.W. (Kgs)
Packaging Dimensions (LxWxH)
SKT100XHD5-E12
100"
16:9
42.2 lb
61.7 lb
20.5 kg
28.0 kg
111.81"x8.46"x7.87"
SKT120XHD5-E12
120"
16:9
51.4 lb
71.1 lb
23.3 kg
32.3 kg
129.92"x8.46"x7.87"
SKT135XHD5-E10
135"
16:9
58.9 lb
75.9 lb
26.7 kg
34.4 kg
142.70"x8.46"x8.07"
SKT150XHD5-E6
150"
16:9
64.3 lb
88.3 lb
29.2 kg
40.0 kg
155.04"x8.46"x7.87"
