Saker Plus Series

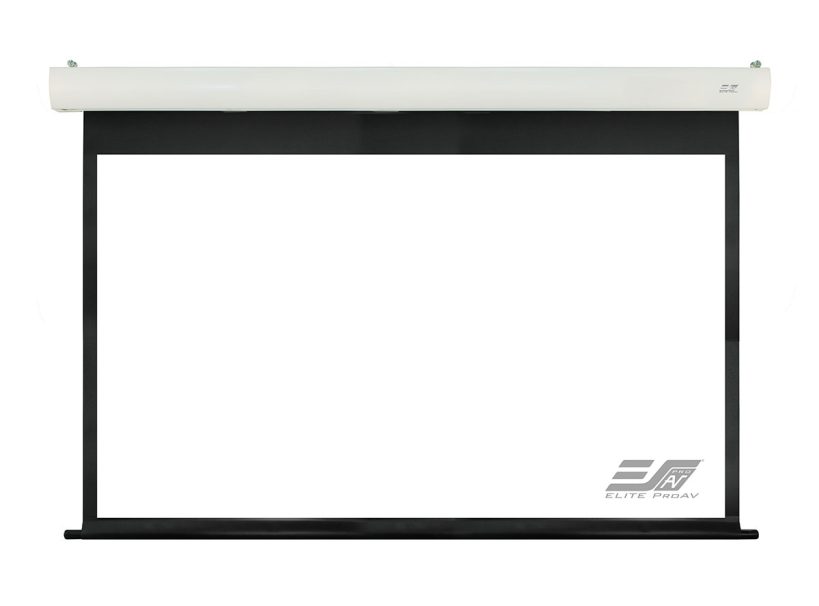

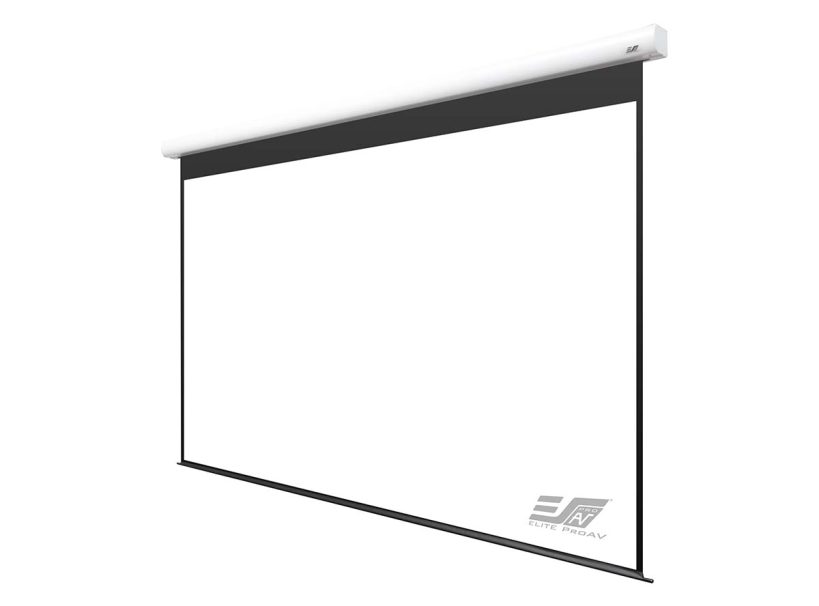

The Saker Plus Series is a Large Venue electric/motorized projection screen. Its list of complimentary features include Infrared and Radio Frequency remote controls, a wireless 12 volt trigger and a detachable keypad switch for manual Up/Stop/Down control. The MaxWhite® front projection material is GREENGUARD® Gold Certified. It has a wide viewing angle and a 1.1 gain reflectivity. The Saker Plus is ideal for auditoriums, gymnasiums, or any other large venue indoor environments.


Where to Buy

Description

Screen Material

  • MaxWhite® 1.1 Gain front projection surface
  • Wide viewing angle, uniformly diffuses light in all directions
  • Active 3D, 4K Ultra HD, and HDR Ready
  • Not compatible with Ultra/Short-throw Projectors

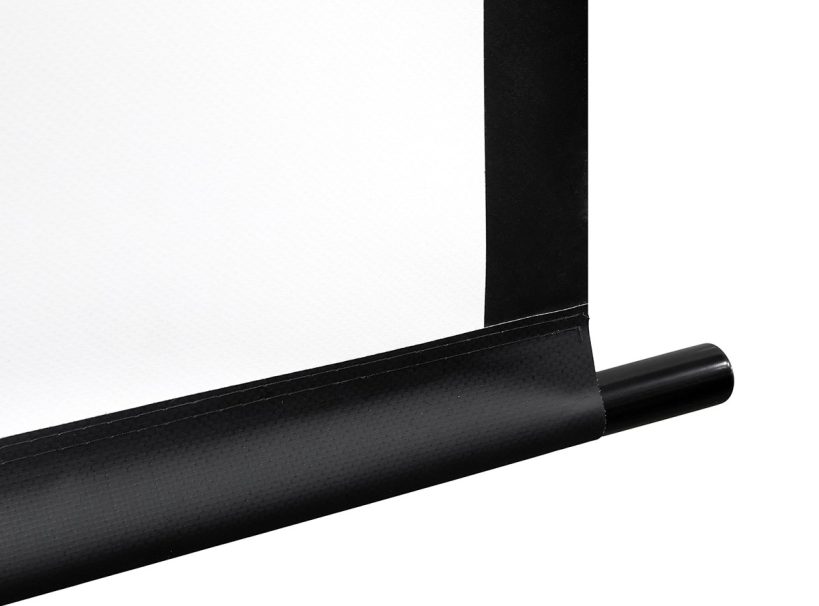

  • Standard black masking borders and black screen backing

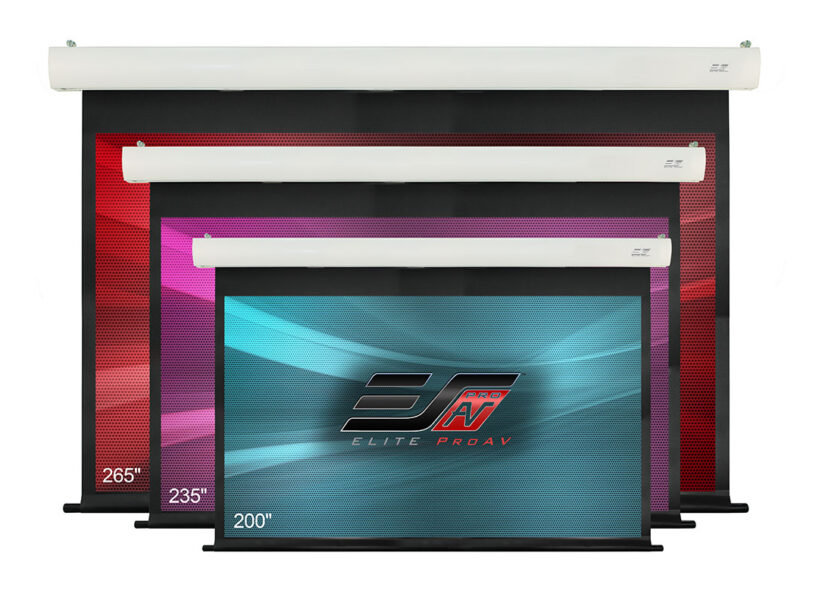

  • Available in the following diagonal sizes:
    • 200″, 235″ and 265″ in 4:3 format
    • 200″, 235″ and 265″ in 16:9 format



Design and Installation

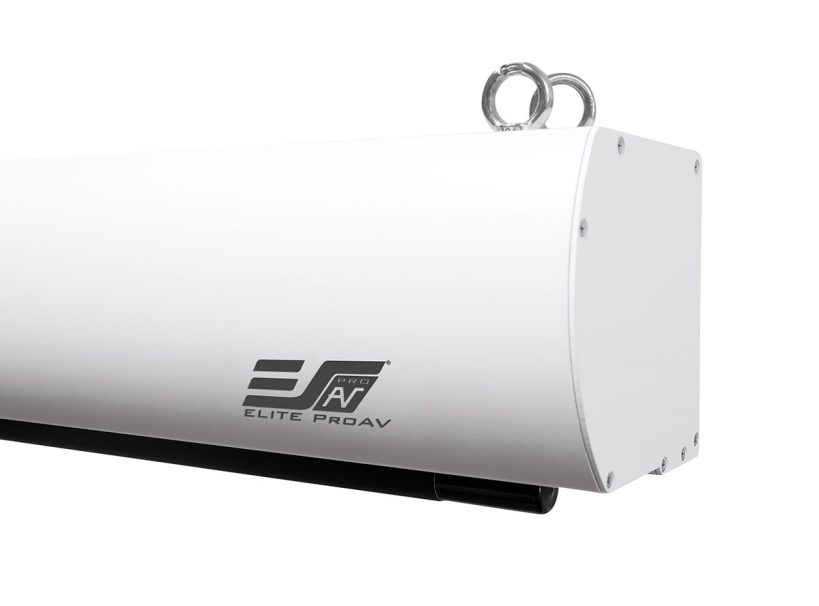

  • Streamlined arcuate profile aluminum heavy-duty white case
  • Ring bolts included on case for suspended ceiling installation
  • Plug & Play ready, no hardwire installation required



Control System

  • Internal Radio Frequency/Infrared receivers with IR, RF remotes included
  • Infrared IR “eye” extension sensor – ideal for concealed installation but still require infrared control
  • Detachable 3-way wall switch keypad for UP/STOP/DOWN manual operation
  • Wireless 5-12 volt trigger included for synchronized screen operation with the projector’s power cycle
  • RJ45 port allows 3rd party control system integration



Quality and Reliability

  • Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
  • GREENGUARD® and GREENGUARD® Gold (UL 2818) Certified for indoor air quality emissions
  • 5-year manufacturer’s warranty

The listed measurements are for general reference only.  Please contact EliteProAV™ to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification.  Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. EliteProAV™ will not be held responsible or be otherwise liable for faulty installations.

Decoding the Model Number
Model Number = SK200XHW2
SK = Saker Series
200 = Nominal Diagonal Size
X = White case/housing
H = HDTV 16:9 aspect ratio
(V = 4:3 / X = 16:10 / S = 1:1 / C = 2.35:1)
W = Matte White screen material
2 = Version 2

Dimensions Table

Model Numbers
Screen Diag.
Aspect Ratio
View Area (HxW)
Screen Material
Case Color
Gain
Case Length
(A)
Distance Between Brackets
(A1)
Screen Width (A2)
View Width (A3)
L/R Border
(A4)
Weight Bar Length (A5)
Overall Height w/out Bracket
(B)
Case Height (B1)
Top  Border
(B2)
View Height (B3)
Bottom Border
(B4)
Screen Height
(B5)
Case Width
(C)
Adjustable Bracket Range
(C1)
C2
C3
C4
SK200XVW2
200"
4:3
120.0"x160.0"
MaxWhite®
White
Gain 1.1
176.0
169.2
163.9
160.0
2.0
167.9
135.0
6.7
6.0
120.0
2.4
128.3
6.7
8.7-11.2
1.9
1.0
2.6
SK235XVW2
235"
4:3
141.0"x188.0"
MaxWhite®
White
Gain 1.1
204.0
197.2
191.9
188.0
2.0
195.9
158.0
6.7
8.0
141.0
2.4
151.3
6.7
8.7-11.2
1.7
1.0
2.6
SK265XVW2
265"
4:3
159.0"x212.0"
MaxWhite®
White
Gain 1.1
228.0
221.2
215.9
212.0
2.0
219.9
178.1
6.7
10.0
159.0
2.4
171.4
6.7
8.7-11.2
1.1
1.0
2.6
SK200XHW2
200"
16:9
98.1"x174.3"
MaxWhite®
White
Gain 1.1
190.3
183.5
178.3
174.3
2.0
182.2
113.1
6.7
6.0
98.1
2.4
106.4
6.7
8.7-11.2
1.9
1.0
2.6
SK235XHW2
235"
16:9
115.2"x204.8"
MaxWhite®
White
Gain 1.1
220.8
214.0
208.8
204.8
2.0
212.7
132.3
6.7
8.0
115.2
2.4
125.6
6.7
8.7-11.2
1.7
1.0
2.6
SK265XHW2
265"
16:9
129.9"x231.0"
MaxWhite®
White
Gain 1.1
247.0
240.2
234.9
231.0
2.0
238.9
149.0
6.7
10.0
129.9
2.4
142.3
6.7
8.7-11.2
1.1
1.0
2.6

Saker Plus Series Line Drawing

Packaging Dimensions

Model Numbers
Diag. Size
Aspect Ratio
Net Weight (lbs.)
Gross Weight (lbs.)
Net Weight (Kgs)
Gross Weight (Kgs)
Packaging Dimensions (LxHxW)
SK200XVW2
200"
4:3
116.4 lb
149.9 lb
52.8 kg
68.0 kg
182.4"x13.4"x11.4"
SK235XVW2
235"
4:3
148.3 lb
186.4 lb
67.3 kg
84.6 kg
211.4"x13.2"x11.2"
SK200XHW2
200"
16:9
120.8 lb
156.0 lb
54.8 kg
70.8 kg
195.9"x13.0"x11.4"
SK235XHW2
235"
16:9
156.5 lb
196.2 lb
71.0 kg
89.0 kg
226.2"x13.0"x11.0"
SK265XVW2
265"
4:3
252.4 lb
271.9 lb
114.4 kg
123.3 kg
232.7"x12.2"x10.0"
SK265XHW2
265"
16:9
264.0 lb
289.4 lb
119.7 kg
131.3 kg
251.2"x12.2"x10.2"
