ezFrame Plus Series

The ezFrame Plus series is our newest fixed frame projection screen line designed for applications requiring large presentations.

Screen Material

  • CineWhite® (matte white) tensioned front projection material
  • 1.1 Gain with black backing
  • 180° wide viewing angle
  • Active 3D, 4K Ultra HD, and HDR Ready

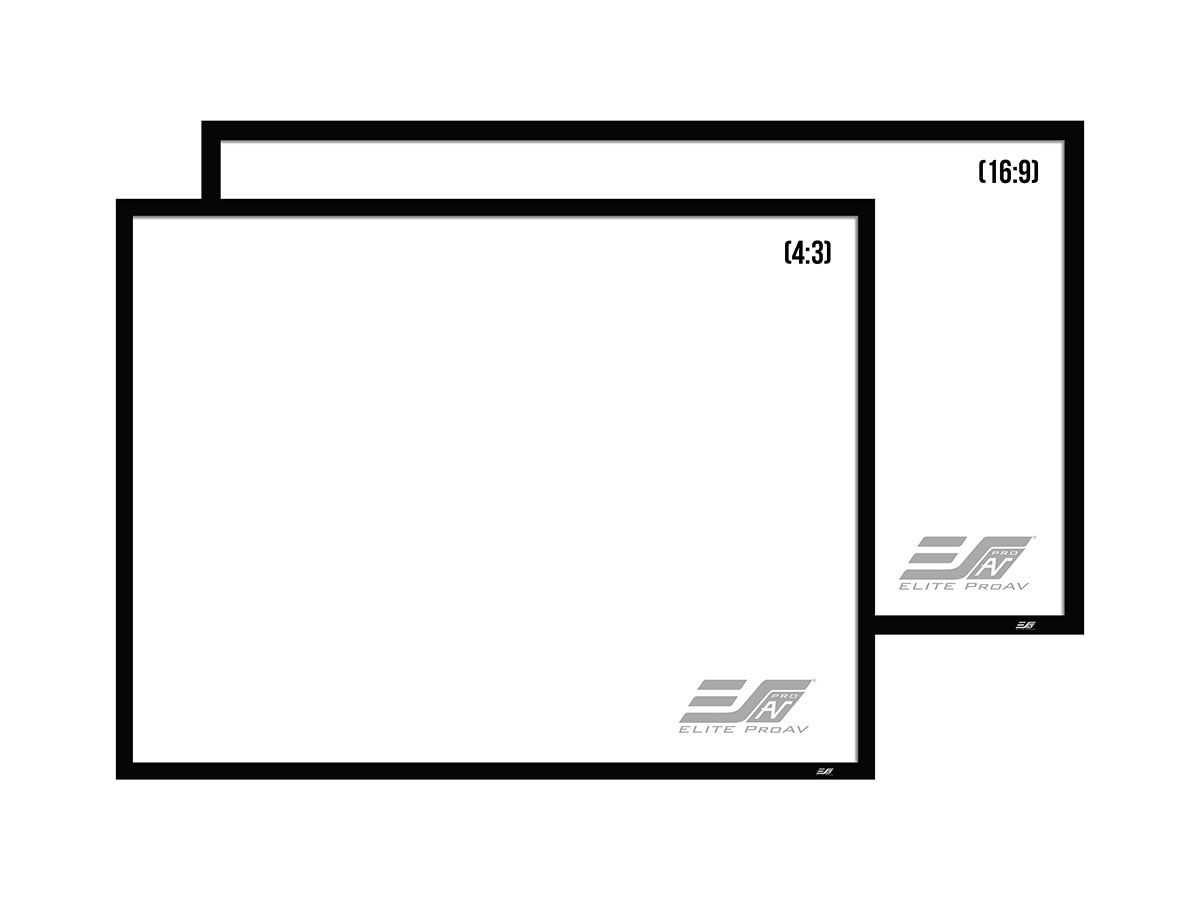

  • Available in the following diagonal sizes:

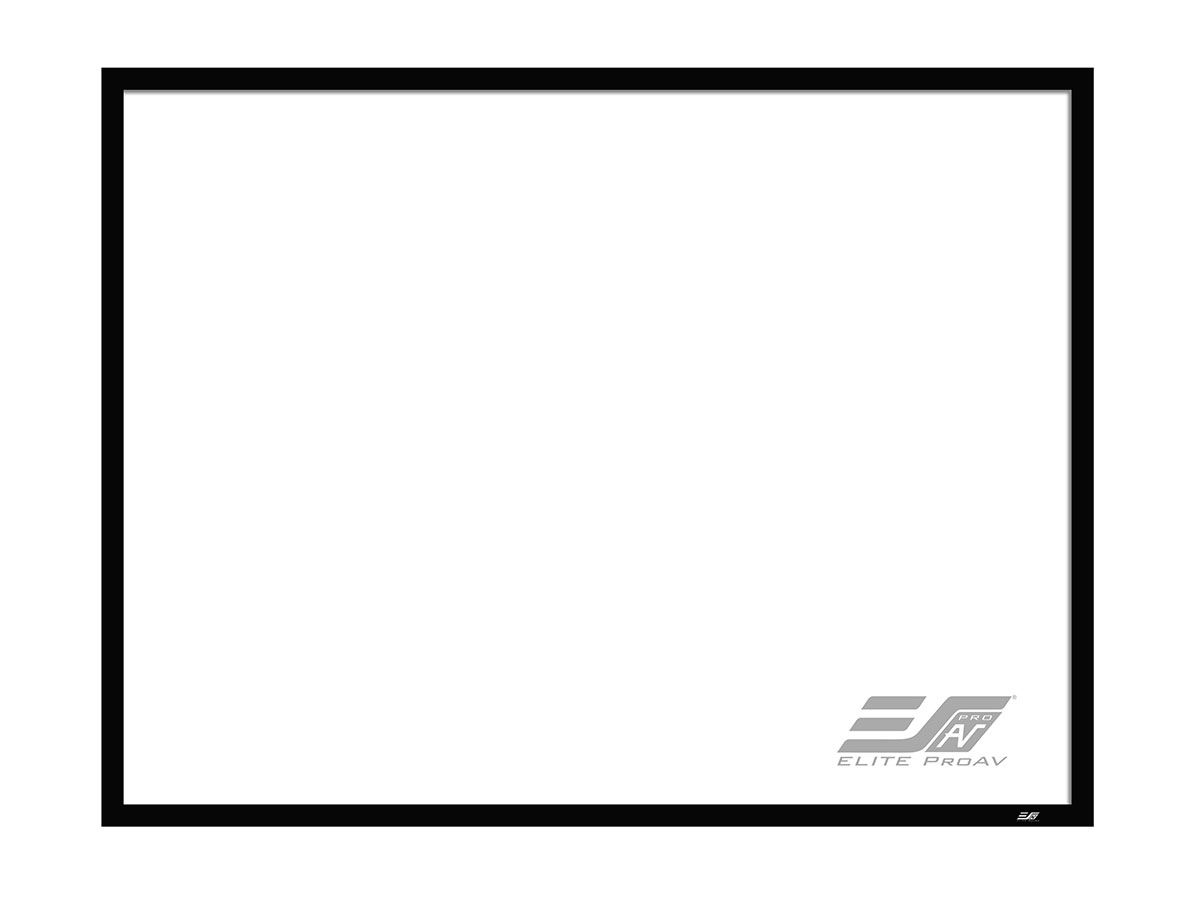

    • 273″, 300″ and 320″ in 4:3 format
    • 200″, 250″, 300″, 345″ and 390″ in 16:9 format



Design and Installation

  • Anodized black aluminum 3.5″ thick frame with black velour surface
  • Sliding wall brackets allow easy flush wall mounting on wood studs or any other secure installation point
  • Ideal for Stadiums, House of Worship, Auditoriums, Concert Halls, etc.



Quality and Reliability

  • 5-year manufacturer’s warranty

Where to Buy

The listed measurements are for general reference only.  Please contact EliteProAV™ to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification.  Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. EliteProAV™ will not be held responsible or be otherwise liable for faulty installations.

Decoding the Model Number
Model Number = R200WH1 Plus
R = ezFrame Series
200 = Nominal Diagonal Size
W = Matte White screen material
H = HDTV 16:9 aspect ratio
(V = 4:3 / X = 16:10 / S = 1:1 / C = 2.35:1)
1 = Version 1
Plus = Large Fixed Frame Screen

Dimensions Table

Model Number
Diag. Size
Aspect Ratio
View Area (HxW)
Screen Material
Case Color
Gain
Overall Width (A)
View Width (A1)
Overall Height (B)
View Height (B1)
Frame Width (C)
Frame Height (D)
Distance Between Top and Bottom Brackets (D1)
R273WV1 Plus
273"
4:3
163.8"x218.4"
CineWhite®
Black
Gain 1.1
225.5
218.4
170.9
163.8
3.5
1.6
168.7
R300WV1 Plus
300"
4:3
180.0"x240.0"
CineWhite®
Black
Gain 1.1
247.1
240.0
187.1
180.0
3.5
1.6
184.9
R320WV1 Plus
320"
4:3
192.0"x256.0"
CineWhite®
Black
Gain 1.1
263.1
256.0
199.1
192.0
3.5
1.6
196.9
R200WH1 Plus
200"
16:9
98.0"x174.4"
CineWhite®
Black
Gain 1.1
181.5
174.4
105.1
98.0
3.5
1.6
103.0
R250WH1 Plus
250"
16:9
122.6"x217.9"
CineWhite®
Black
Gain 1.1
225.0
217.9
129.7
122.6
3.5
1.6
127.6
R300WH1 Plus
300"
16:9
147.1"x261.5"
CineWhite®
Black
Gain 1.1
268.6
261.5
154.2
147.1
3.5
1.6
152.0
R345WH1 Plus
345"
16:9
169.2"x300.7"
CineWhite®
Black
Gain 1.1
307.8
300.7
176.2
169.2
3.5
1.6
174.0
R390WH1 Plus
390"
16:9
191.2"x339.9"
CineWhite®
Black
Gain 1.1
347.0
339.9
198.3
191.2
3.5
1.6
196.1

ezFrame Plus Series Line Drawing

Packaging Dimensions

Model Number
Diag. Size
Aspect Ratio
N.W. (lbs.)
G. W.(lbs.)
N. W. (Kgs)
G. W.(Kgs)
Packaging Dimensions (LxHxW)
R273WV1 Plus
273"
4:3
112.7 lb
140.5 lb
51.1 kg
63.8 kg
175.2"x5.9"x12.6"
R300WV1 Plus
300"
4:3
125.1 lb
141.8 lb
56.8 kg
64.3 kg
191.2"x5.9"x12.6"
R320WV1 Plus
320"
4:3
159.0 lb
184.3 lb
72.1 kg
83.6 kg
205.1"x6.3"x15.8"
R200WH1 Plus
200"
16:9
57.4 lb
75.4 lb
26.0 kg
34.2 kg
119.3"x5.1"x12.2"
R250WH1 Plus
250"
16:9
83.3 lb
106.5 lb
37.8 kg
48.3 kg
135.0"x6.3"x15.7"
R300WH1 Plus
300"
16:9
120.3 lb
140.1 lb
54.6 kg
63.5 kg
159.4"x6.3"x15.7"
R345WH1 Plus
345"
16:9
138.0 lb
163.8 lb
62.6 kg
74.3 kg
182.1"x6.3"x18.1"
R390WH1 Plus
390"
16:9
160.6 lb
191.5 lb
72.8 kg
86.9 kg
201.1"x6.5"x18.1"
