Evanesce Tab-Tension Series

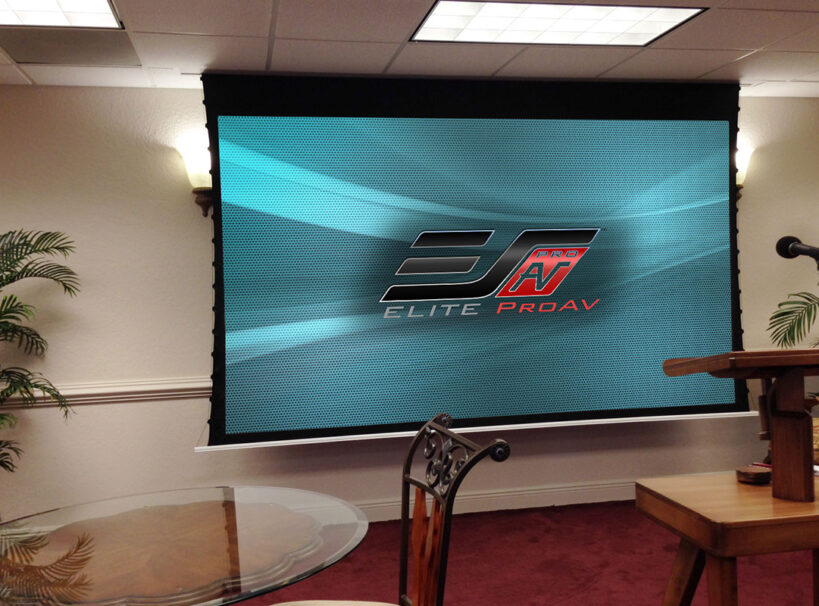

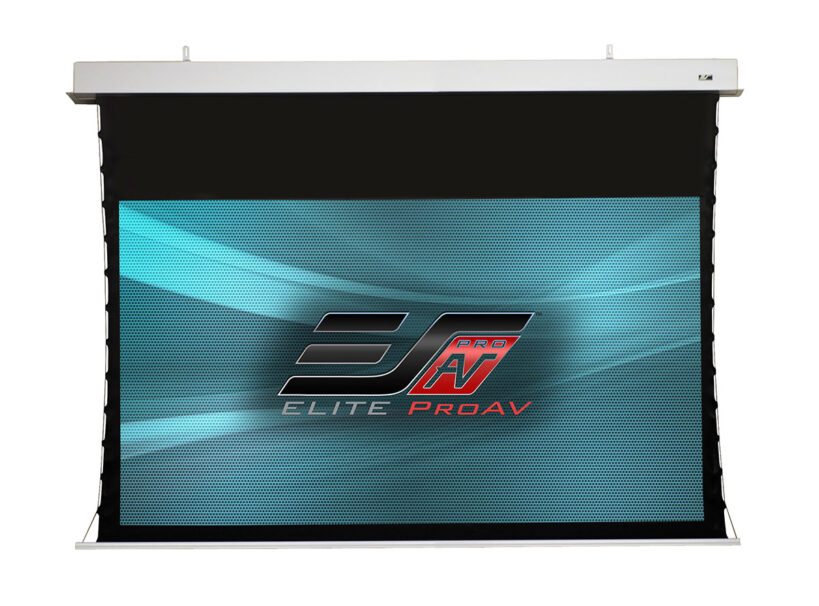

The Evanesce Tab-Tension is a versatile in-ceiling projection screen that conveniently disappears from view when not in use. It can be installed from within the above-ceiling airspace or from below thanks to its removable base panels that were originally designed for the European market. Its award-winning CineWhite® 1.1 gain matte white tensioned-material provides superb color temperature with wide diffusion uniformity. The screen is moved by a strong, fast-acting tubular motor and comes with a full IR/RF wireless, 12-volt trigger and Ethernet control package.


Where to Buy

Description

Screen Material

  • Award winning CineWhite® 1.1 Gain black backed matte white screen material
  • 180º wide-viewing angle
  • 4K Ultra HD, Active 3D, and HDR Ready

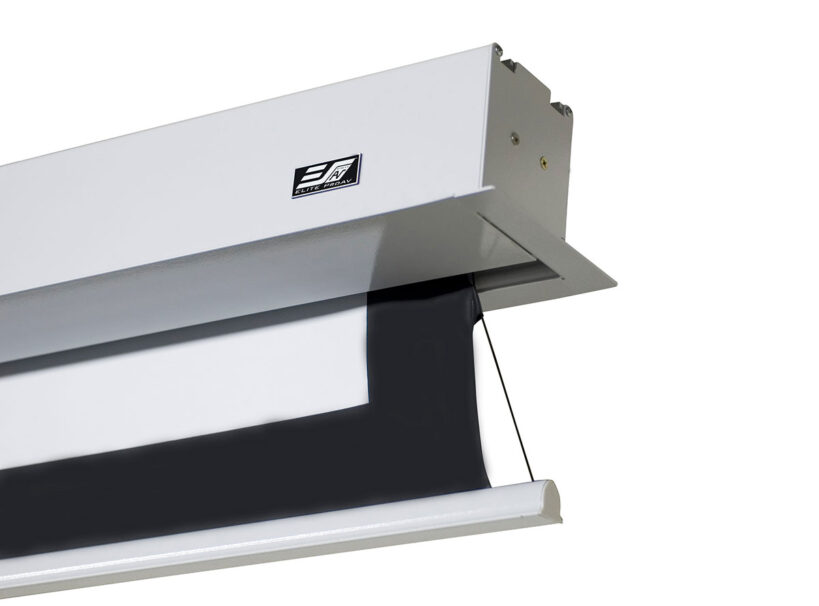

  • Tab-tension cords provide uniform flatness on entire projection surface
  • Standard 8″ top drop
  • Available in the following diagonal sizes:
    • 100″, 106″, 120″ and 135″ in 16:9 format



Design and Installation

  • Disappearing recessed in-ceiling design for non-dedicated media rooms

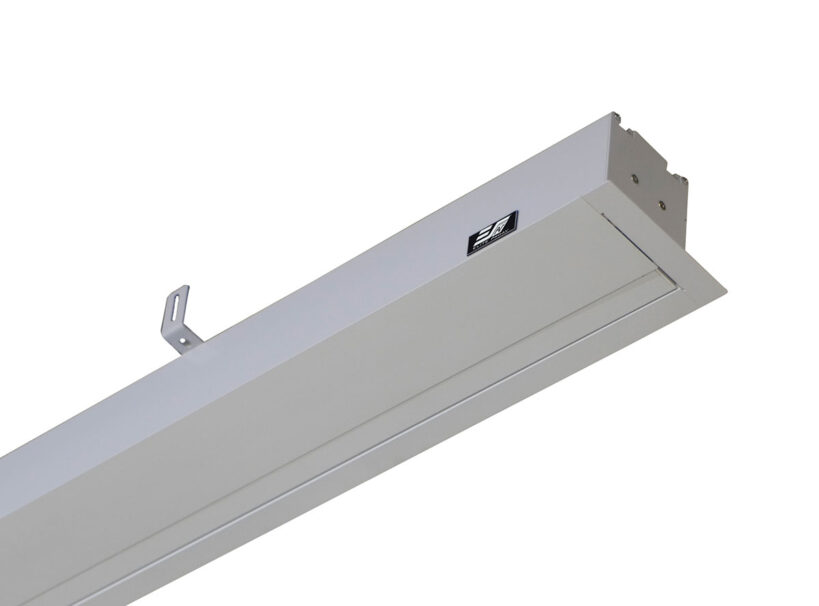

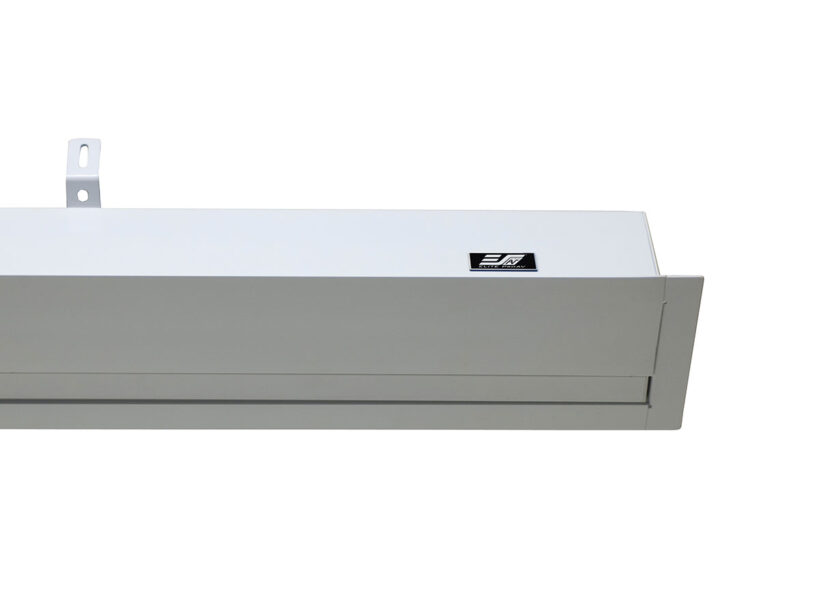

  • Aluminum housing with white finish (RAL9003) is strong and moisture resistant
  • Integrated ceiling projection screen ships fully assembled, ready to install
  • Installation kit included for above or below ceiling



Control System

  • Internal Radio Frequency/Infrared receivers with IR, RF remotes included
  • Low voltage 3-way wall switch and in-wall RJ45 module included
  • Standard 5-12 volt trigger to synchronize screen operation with the projector’s power cycle
  • Optional in-wall up/down switch (part# ZIW-W) – sold separately



Quality and Reliability

  • ETL, FCC, CE, CB GOSTCE & ISO9001:2008
  • Conforms to UL 2043 – Plenum Rated: Suitable for air-handling spaces
  • 5-year manufacturer’s warranty

The listed measurements are for general reference only.  Please contact EliteProAV™ to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification.  Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. EliteProAV™ will not be held responsible or be otherwise liable for faulty installations.

Decoding the Model Number
Model Number = ITE100HW2-E8
ITE = In-ceiling Tab-Tensioned Screen
100 = Nominal Diagonal Size
H = HDTV 16:9 aspect ratio
(V = 4:3 / X = 16:10 / S = 1:1 / C = 2.35:1)
W = Matte White screen material
2 = Version 2
E8 = 8" of top black masking border/leader

Dimensions Table (Above Ceiling)

Model
Diag. Size
Aspect Ratio
View Area (HxW)
Screen Material
Case Color
Gain
View Width (A)
L/R Black Masking (A1)
Screen Width
Case Length (A2)
Full Housing Length (A3)
Distance Between J Hooks (A4)
Weight Bar Length (A5)
View Height (B)
Top Border (B1)
Screen Fully Deployed (B2)
Case Height (B3)
Overall Height (B4)
Bottom Border (B5)
Case Width (C)
C1
C2
C3
C4
C5
C6
ITE100HW2-E8
100"
16:9
49.0"x87.2"
CineWhite®
White
Gain 1.1
87.2
3.7
94.6
99.6
102.0
83.9
99.2
49.0
8.0
60.9
4.6
65.6
3.9
3.9
2.0
36.4
5.7
7.1
45.1-47.4
5.8
ITE106HW2-E8
106"
16:9
52.0"x92.4"
CineWhite®
White
Gain 1.1
92.4
3.7
99.9
104.7
107.1
89.0
104.3
52.0
8.0
63.9
4.6
68.5
3.9
3.9
2.0
36.4
5.7
7.1
45.1-47.4
5.8
ITE120HW2-E8
120"
16:9
58.8"x104.6"
CineWhite®
White
Gain 1.1
104.6
3.7
112.1
117.0
119.4
101.3
116.6
58.8
8.0
70.7
4.6
75.4
3.9
3.9
2.0
36.4
5.7
7.1
45.1-47.4
5.8
ITE135HW2-E8
135"
16:9
66.2"x117.7"
CineWhite®
White
Gain 1.1
117.7
3.7
125.2
130.3
132.7
114.6
129.9
66.2
8.0
78.1
4.6
82.8
3.9
3.9
2.0
36.4
5.7
7.1
45.1-47.4
5.8

Evanesce Tab-Tension Series Above Ceiling Installation Line Drawing

Dimensions Table (Below Ceiling)

Model Number
Diag. Size
Aspect Ratio
View Area (HxW)
Screen Material
Case Color
Gain
View Width (A)
L/R Border (A1)
Screen Width
Case Length (A2)
Overall Length (A3)
A4
Weight bar length (A5)
View Height (B)
Top Black Masking (B1)
B2
Case Height (B3)
Top of Case to Bottom of Screen (B4)
Bottom border (B5)
C
C1
C2
C3
ITE100HW2-E8
100"
16:9
49.0"x87.2"
CineWhite®
White
Gain 1.1
87.2
3.7
94.6
99.6
102.0
100.6
99.2
49.0
8.0
60.9
4.6
65.6
3.9
3.9
5.8
4.7
101.5
ITE106HW2-E8
106"
16:9
52.0"x92.4"
CineWhite®
White
Gain 1.1
92.4
3.7
99.9
104.7
107.1
105.7
104.3
52.0
8.0
63.9
4.6
68.5
3.9
3.9
5.8
4.7
106.7
ITE120HW2-E8
120"
16:9
58.8"x104.6"
CineWhite®
White
Gain 1.1
104.6
3.7
112.1
117.0
119.4
118.0
116.6
58.8
8.0
70.7
4.6
75.4
3.9
3.9
5.8
4.7
118.9
ITE135HW2-E8
135"
16:9
66.2"x117.7"
CineWhite®
White
Gain 1.1
117.7
3.7
125.2
130.3
132.7
131.3
129.9
66.2
8.0
78.1
4.6
82.8
3.9
3.9
5.8
4.7
132.2

Evanesce Tab-Tension Series Below Ceiling Installation Line Drawing

Packaging Dimensions

Model Number
Diag. Size
Aspect Ratio
N.W. (lbs.)
G.W. (lbs.)
N.W. (kgs)
G.W. (Kgs)
Packaging Dimensions
(LxHxW)
ITE100HW2-E8
100"
16:9
43.8 lb
66.9 lb
19.9 kg
30.4 kg
106.7"x7.7"x8.7"
ITE106HW2-E8
106"
16:9
44.0 lb
60.0 lb
20.0 kg
27.3 kg
109.4"x7.5"x8.3"
ITE120HW2-E8
120"
16:9
52.5 lb
76.8 lb
23.8 kg
34.8 kg
126.0"x7.7"x8.7"
ITE135HW2-E8
135"
16:9
58.7 lb
83.2 lb
26.6 kg
37.7 kg
139.0"x7.5"x8.5"
