Evanesce Plus Series

The Evanesce Plus is a large in-ceiling projection screen suitable for big size rooms.  It is the ideal companion for medium to large size auditoriums, gymnasiums, banquet/reception rooms, and large home theaters.  The Evanesce Plus includes Infrared and Radio Frequency remote controls, a manual wall switch keypad, and our GREENGUARD® Certified MaxWhite® FG front projection material.


Where to Buy

Description

Screen Material

  • GREENGUARD Certified MaxWhite® FG 1.1 Gain black backed matte white screen material is durable and easy to clean
  • 180° wide-viewing angle for commercial and residential presentations
  • Not compatible with Ultra/Short-throw Projectors
  • Black masking borders enhance picture contrast
  • 4K Ultra HD, Active 3D, and HDR Ready
  • Available in the following diagonal sizes:
    • 150″, 180″, and 200″ in 4:3 format
    • 150″, 180″, and 200″ in 16:9 format



Design and Installation

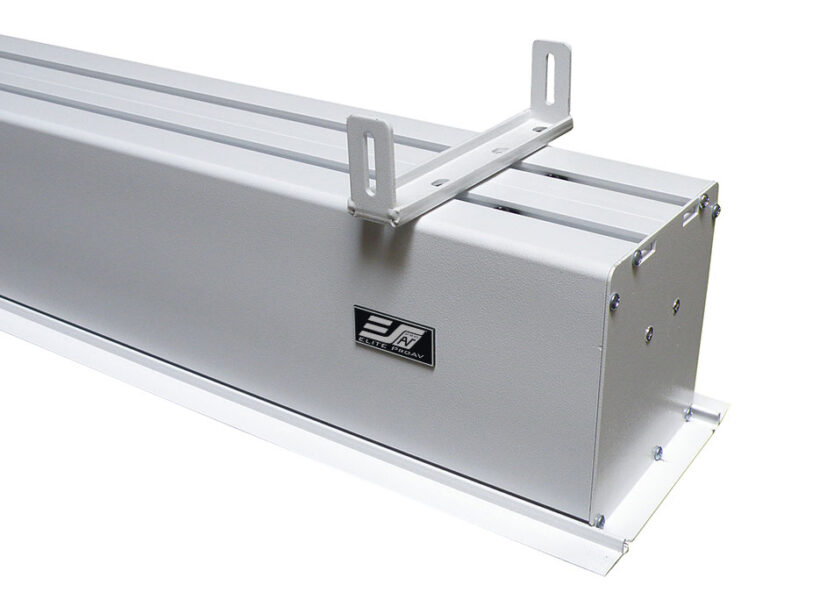

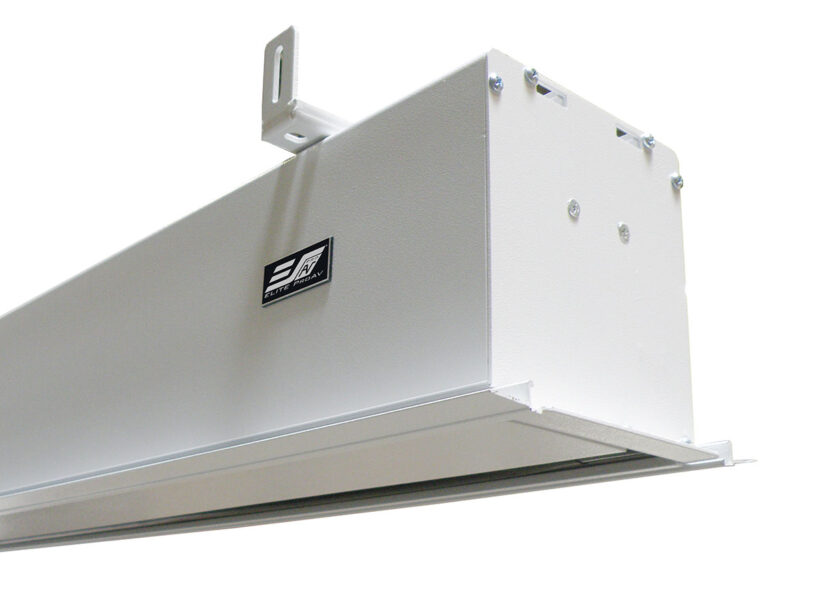

  • Extra wide and heavy-duty aluminum housing with white finish (RAL9003) is strong and moisture resistant
  • Concealed in-ceiling recessed front projection screen for large size rooms
  • Slideable top hanging brackets
  • Above ceiling installation kit included



Control System



Quality and Reliability

  • Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
  • ETL, FCC, CE, CB GOSTCE & ISO9001:2008 Certified
  • Flame Resistant: Complies with NFPA 701 Standards
  • GREENGUARD® and GREENGUARD® Gold Certified
  • 5-year manufacturer’s warranty

The listed measurements are for general reference only.  Please contact EliteProAV™ to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification.  Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. EliteProAV™ will not be held responsible or be otherwise liable for faulty installations.

Decoding the Model Number
Model Number = IHOME150HW2-E12
IHOME = In-ceiling Evanesce
150 = Nominal Diagonal Size
H = HDTV 16:9 aspect ratio
(V = 4:3 / X = 16:10 / S = 1:1 / C = 2.35:1)
W = Matte White screen material
2 = Version 2
E12 = 12" of top black masking border/leader

Dimensions Table

Model Number
Diag. Size
Aspect Ratio
View Area (HxW)
Screen Material
Case Color
Gain
View Width (A)
L/R black masking borders (A1)
Screen Width
Case Length (A2)
Full Housing Length (A3)
A4
A5
View Height (B)
Top Black  Border (B1)
B2
B3
B4
B5
C
C1
C2
C3
C4
C5
C6
IHOME150VW2-E12
150"
4:3
90.0"x120.0"
MaxWhite® Fiberglass
White
Gain 1.1
120.0
2.0
124.0
127.8
129.4
112.1
127.1
90.0
12.0
104.4
5.9
110.3
2.4
5.3
2.0
36.4
6.9
8.3
45.1-47.4
6.9
IHOME180VW2-E12
180"
4:3
108.0"x144.0"
MaxWhite® Fiberglass
White
Gain 1.1
144.0
2.0
148.0
151.9
153.4
136.1
151.1
108.0
12.0
122.4
5.9
128.3
2.4
5.3
2.0
36.4
6.9
8.3
45.1-47.4
6.9
IHOME200VW2-E8
200"
4:3
120.0"x160.0"
MaxWhite® Fiberglass
White
Gain 1.1
160.0
2.0
164.0
167.8
169.4
152.1
167.1
120.0
8.0
130.4
5.9
136.3
2.4
5.3
2.0
36.4
6.9
8.3
45.1-47.4
6.9
IHOME150HW2-E12
150"
16:9
73.5"x130.7"
MaxWhite® Fiberglass
White
Gain 1.1
130.7
2.0
134.7
138.6
140.2
122.8
137.8
73.5
12.0
87.9
5.9
93.8
2.4
5.3
2.0
36.4
6.9
8.3
45.1-47.4
6.9
IHOME180HW2-E12
180"
16:9
88.2"x156.9"
MaxWhite® Fiberglass
White
Gain 1.1
156.9
2.0
160.9
164.7
166.3
149.0
164.0
88.2
12.0
102.6
5.9
108.5
2.4
5.3
2.0
36.4
6.9
8.3
45.1-47.4
6.9
IHOME200HW2-E6
200"
16:9
98.1"x174.3"
MaxWhite® Fiberglass
White
Gain 1.1
174.3
2.0
178.3
182.2
183.7
166.4
181.4
98.1
6.0
106.4
5.9
112.3
2.4
5.3
2.0
36.4
6.9
8.3
45.1-47.4
6.9

Evanesce Plus Series Line Drawing

Packaging Dimensions

Model Number
Diag. Size
Aspect Ratio
N.W. (lbs.)
G.W. (lbs.)
N.W. (kgs)
G.W. (Kgs)
Packaging Dimensions
(LxHxW)
IHOME150VW2-E12
150"
4:3
59.8 lb
87.9 lb
27.1 kg
39.9 kg
134.0"x11.0"x11.0"
IHOME180VW2-E12
180"
4:3
82.6 lb
106.8 lb
37.6 kg
48.5 kg
157.6"x11.0"x11.4"
IHOME200VW2-E8
200"
4:3
109.4 lb
127.4 lb
49.6 kg
57.8 kg
173.0"x10.0"x11.0"
IHOME150HW2-E12
150"
16:9
66.1 lb
95.6 lb
30.0 kg
43.4 lb
146.1"x11.0"x11.4"
IHOME180HW2-E12
180"
16:9
89.3 lb
118.8 lb
40.5 kg
53.9 kg
171.3"x11.2"x11.4"
IHOME200HW2-E6
200"
16:9
106.9 lb
142.5 lb
48.5 kg
64.6 kg
189.4"x11.0"x11.4"
