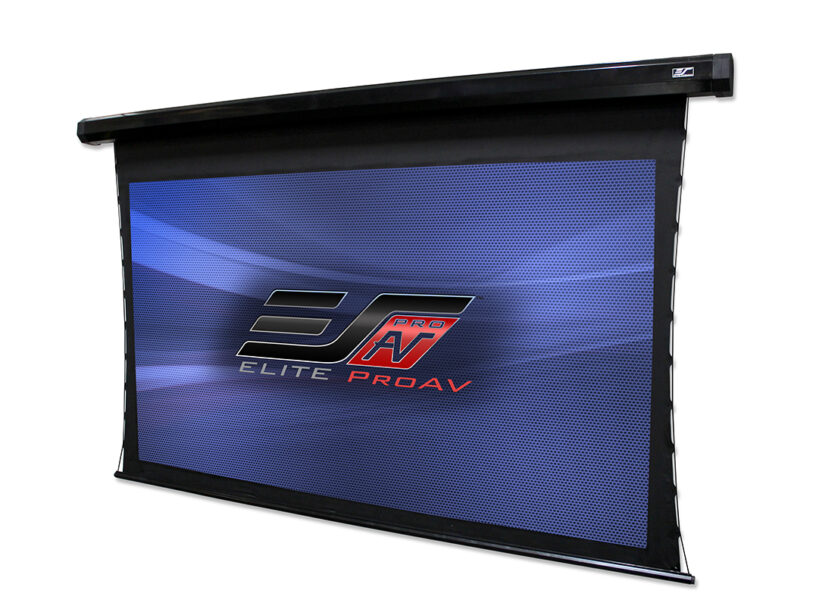

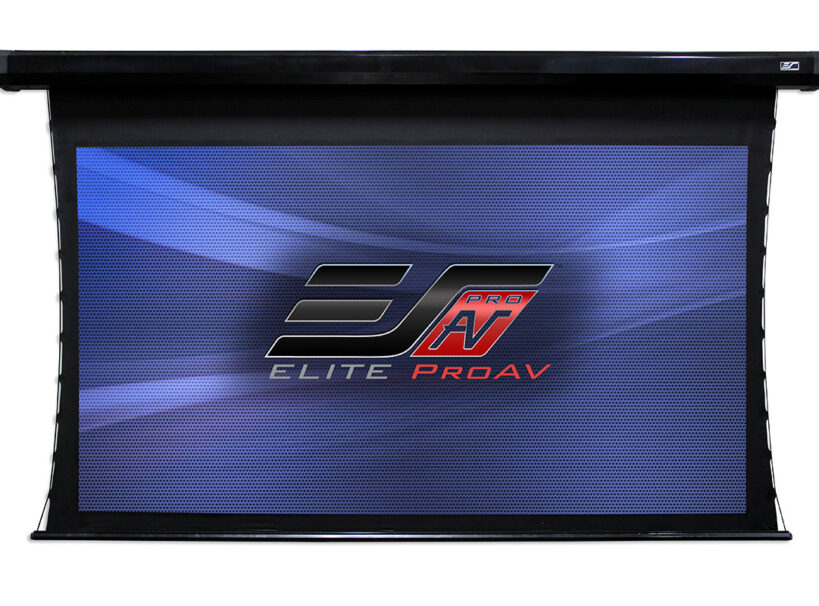

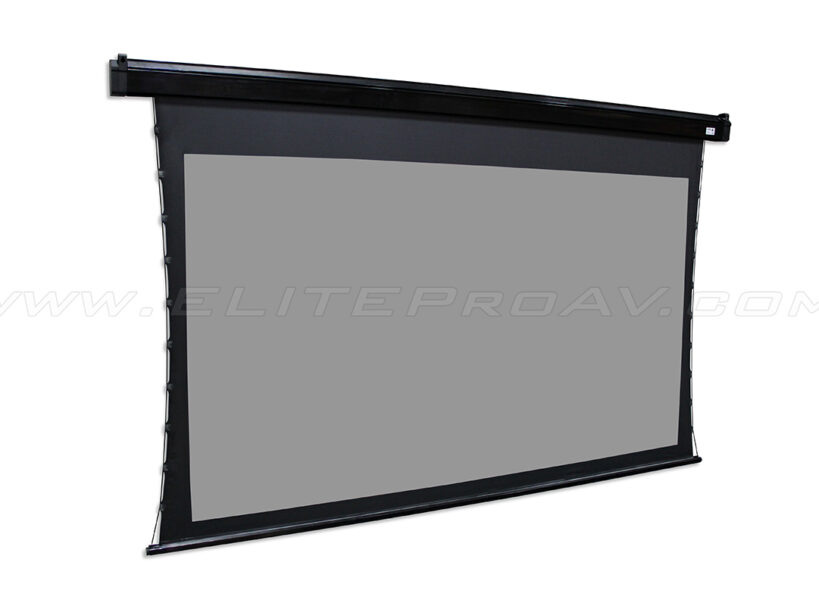

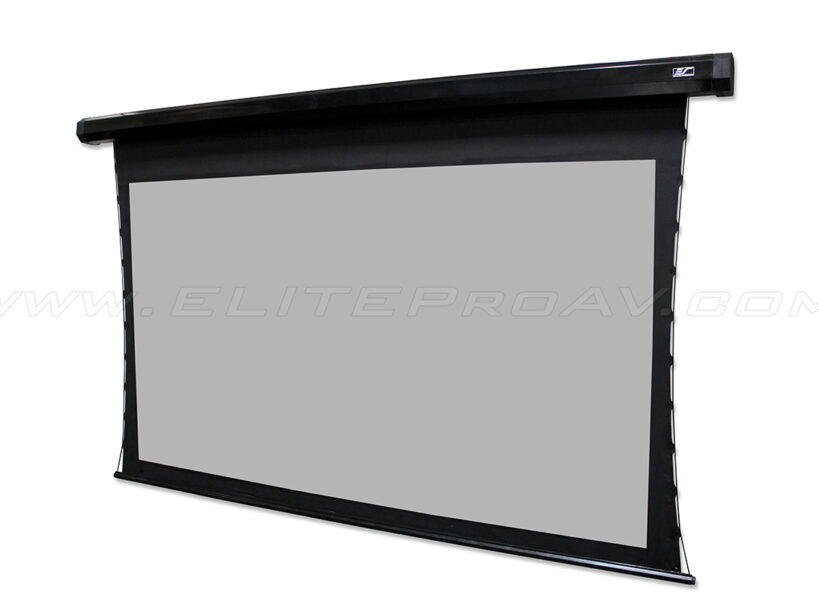

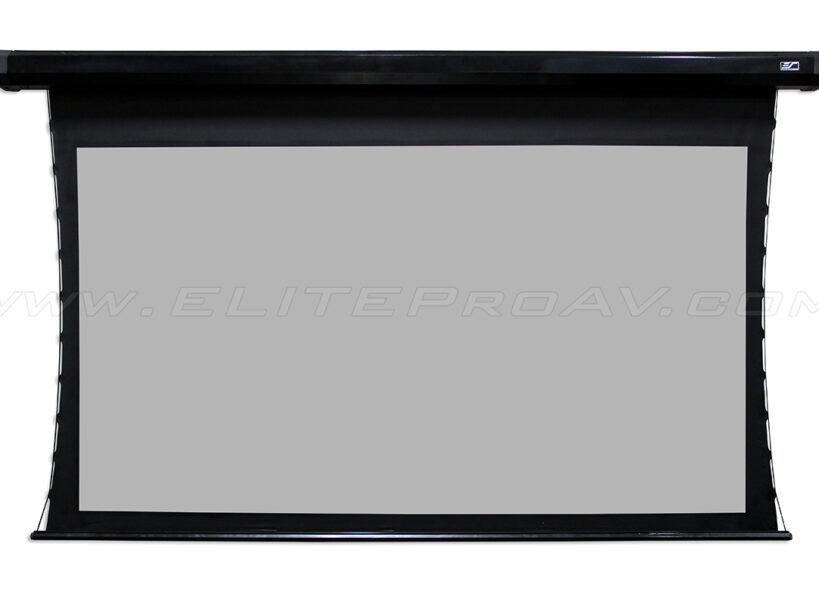

CineTension2 Rear Series

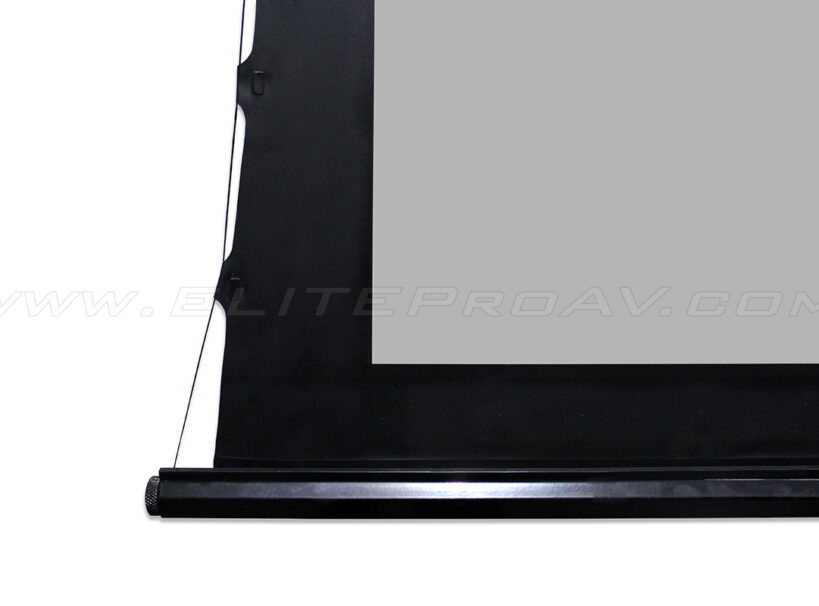

CineTension2 is a robust and well made electric motorized projector screen. Its tab-tensioned material provides uniform flatness and has a wide viewing angle. The 2.2 gain material is also 4K Ultra HD and active 3D ready. It drops and retracts by means of a powerful tubular motor and its sliding installation brackets ensure a perfectly centered installation. A full IR/RF, RJ45 and 5-12 volt trigger control package is included.

Available in the following rear projection material

Material Name Gain Viewing Angle Description

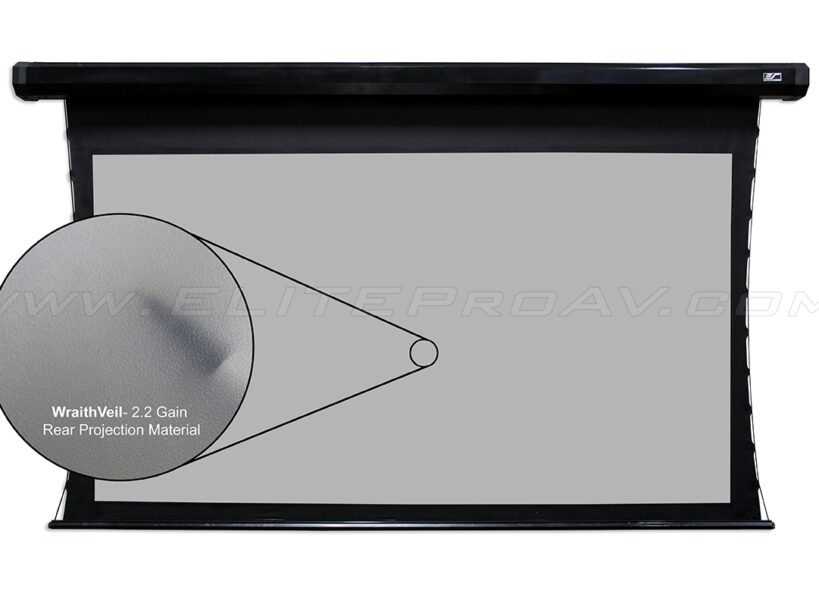

WraithVeil 2.2 160° WraithVeil is our rear projection material which has a special surface coating that enhances color reproduction and black level contrast with good uniformity for large audiences. Ideal for moderate room lighting environments.

Where to Buy

Description

Screen Material

  • WraithVeil enhances color reproduction and black level contrast
  • 160° wide viewing angle
  • 4K Ultra HD, Active 3D, and HDR Ready
  • Standard 4-side black masking borders
  • Front projection material models also available
  • Available in the following range of diagonal sizes
    • 84″ – 150″ in 16:9 format



Design and Installation

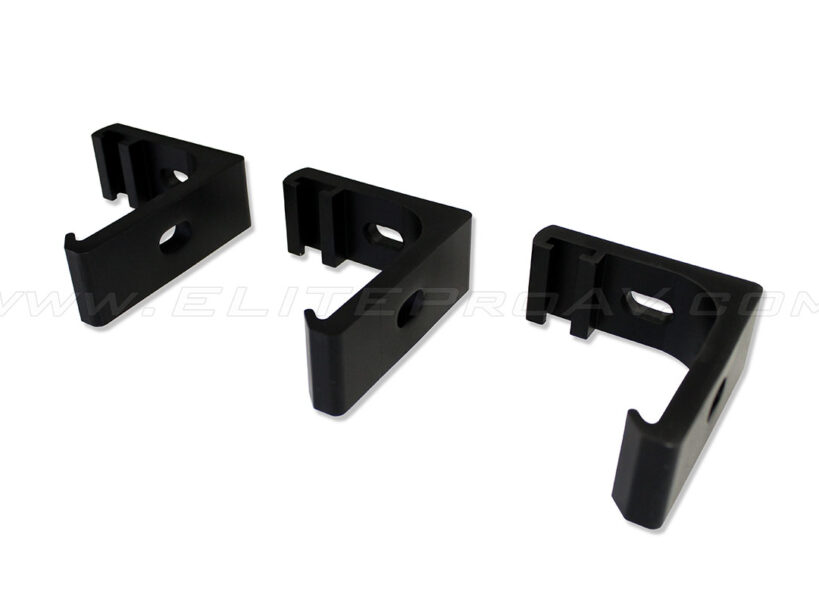

  • Floating installation brackets provide easy alignment with wood studs to accommodate a wall or ceiling installation

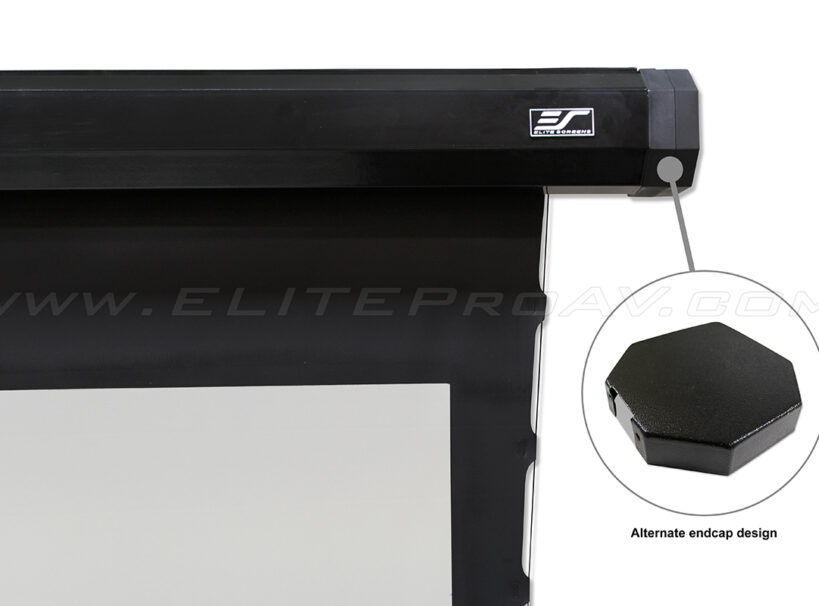

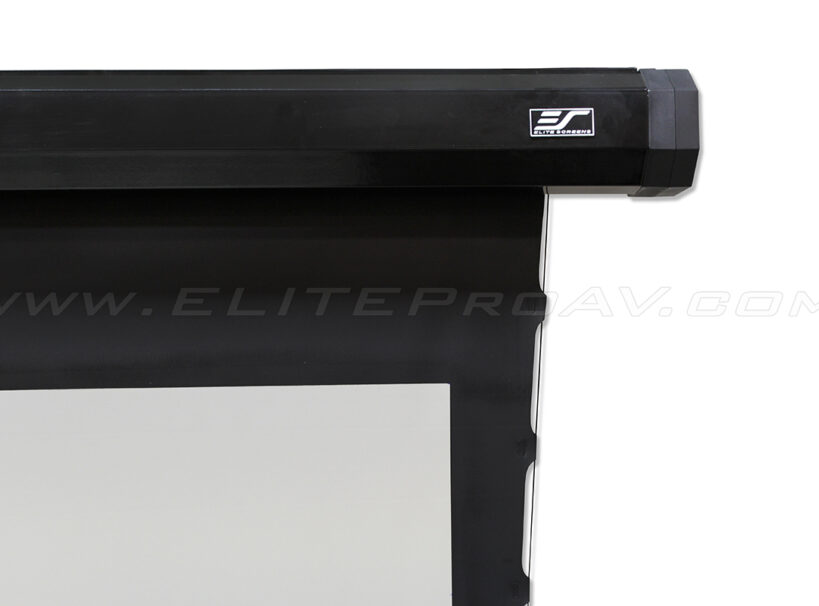

  • Black Aluminum housing with enamel coating is moisture resistant
  • Shipped ready to plug & play with installation kit containing brackets, screws, and bubble leveler included
  • Optional in-ceiling trim kit – sold separately
  • Optional extended 11×4 or 12×8 L brackets – sold separately



Control System

  • Standard Infrared (IR) and Radio Frequency (RF) remote controls
  • Low-voltage detachable 3-way wall switch for in-line control
  • Extended IR “eye” sensor for in-ceiling Infrared operation
  • Wireless 5-12 volt trigger included for synchronized screen operation with the projector’s power cycle
  • RJ45 port allows 3rd party control system integration
  • Optional In-wall switch available – sold separately



Quality and Reliability

  • Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
  • Certified by AMX and CRESTRON
  • Conforms to ANSI/UL STD. 60950-1
  • Certified to CAN/CSA STD. C22.2
  • 5-year manufacturer’s warranty

The listed measurements are for general reference only. Please contact EliteProAV™ to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification. Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. EliteProAV™ will not be held responsible or be otherwise liable for faulty installations.

Decoding the Model Number
Model Number = TE120HR2
TE = Tensioned Screen
120 = Nominal Diagonal Size
H = HDTV 16:9 aspect ratio
R = WraithVeil
2 = Version 2

Dimensions Table

Model Number
Diag. Size
Aspect Ratio
View Area (HxW)
Screen Material
Case Color
Gain
Case Length (A)
View Width (A1)
Screen Width (A2)
Weight Bar Length (A3)
Overall Height w/ Bracket (B)
View Height (B1)
Bottom of Case to End of Weight Bar (B2)
Overall Height (B3)
Bottom Edge (B4)
Case Height (B5)
Height Between Bracket and Case (B6)
Top Black Masking (B8)
Case Width  (C )
Case End to Screen (C1)
distance between case and the wall  (C2)
TE106HR2
106"
16:9
52.0"x92.4"
Wraith Veil
Black
Gain 2.2
109.0
92.4
99.9
104.4
68.4
52.0
61.7
66.5
3.8
4.7
6.7
6.0
4.8
0.9
5.2
TE120HR2
120"
16:9
58.8"x104.6"
Wraith Veil
Black
Gain 2.2
122.3
104.6
113.3
117.8
73.3
58.8
66.6
71.3
3.8
4.7
6.7
4.0
4.8
0.9
5.2
TE135HR2
135"
16:9
66.2"x117.7"
Wraith Veil
Black
Gain 2.2
135.4
117.7
126.3
130.9
80.7
66.2
74.0
78.7
3.8
4.7
6.7
4.0
4.8
0.9
5.2
TE150HR2
150"
16:9
73.5"x130.7"
Wraith Veil
Black
Gain 2.2
149.7
130.7
139.4
145.2
88.0
73.5
81.3
86.1
3.8
4.7
6.7
4.0
4.8
0.9
5.2
TE84HR2
84"
16:9
41.2"x73.2"
Wraith Veil
Black
Gain 2.2
89.8
73.2
80.7
84.6
57.6
41.2
50.9
55.7
3.8
4.7
6.7
6.0
4.8
0.9
5.2
TE92HR2
92"
16:9
45.1"x80.2"
Wraith Veil
Black
Gain 2.2
96.0
80.2
87.7
91.5
61.5
45.1
54.8
59.6
3.8
4.7
6.7
6.0
4.8
0.9
5.2

CineTension2 Series Line Drawing

Packaging Dimensions

Model Number
Diag. Size
Aspect Ratio
N.W. (lbs.)
G.W. (lbs.)
N.W. (kgs)
G.W. (Kgs)
Packaging Dimensions (LxHxW)
TE106HR2
106"
16:9
40.9 lb
57.5 lb
18.6 kg
26.1 kg
116.5"x7.9"x9.8"
TE120HR2
120"
16:9
52.7 lb
70.5 lb
24.0 kg
32.1 kg
129.9"x7.9"x9.8"
TE135HR2
135"
16:9
62.5 lb
82.8 lb
28.3 kg
37.6 kg
142.9"x7.9"x9.8"
TE150HR2
150"
16:9
68.9 lb
91.1 lb
31.3 kg
41.3 kg
155.9"x7.9"x9.4"
TE84HR2
84"
16:9
27.0 lb
41.5 lb
12.3 kg
18.8 kg
94.0"x7.3"x8.5"
TE92HR2
92"
16:9
42.6 lb
57.8 lb
19.4 kg
26.3 kg
103.3"x7.5"x9.8"
