CineTension Plus Series

CineTension Plus is a robust and well made electric motorized projector screen. Its tab-tensioned material provides uniform flatness and has a wide viewing angle. The 1.1 gain material is also 4K Ultra HD and active 3D ready. It drops and retracts by means of a powerful tubular motor and its sliding installation brackets ensure a perfectly centered installation. A full IR/RF, RJ45 and 5-12 volt trigger control package is included.

Available in the following projection material

Material Name Gain Viewing Angle Description
CineWhite®  1.1 180° CineWhite® has broad light dispersion through diffusion uniformity, black  & white contrast and true color rendition. Recommended for rooms with controlled lighting. Works with Standard, Ultra/Short-throw 1080P/4K projectors.
WraithVeil  2.2 160° WraithVeil is our rear projection material which has a special surface coating that enhances color reproduction and black level contrast with good uniformity for large audiences. Ideal for moderate room lighting environments.

Where to Buy

Description

Screen Material

  • CineWhite® Tension material provides uniform flatness in a versatile material
  • 180° wide viewing angle
  • Active 3D, 4K Ultra HD, and HDR Ready

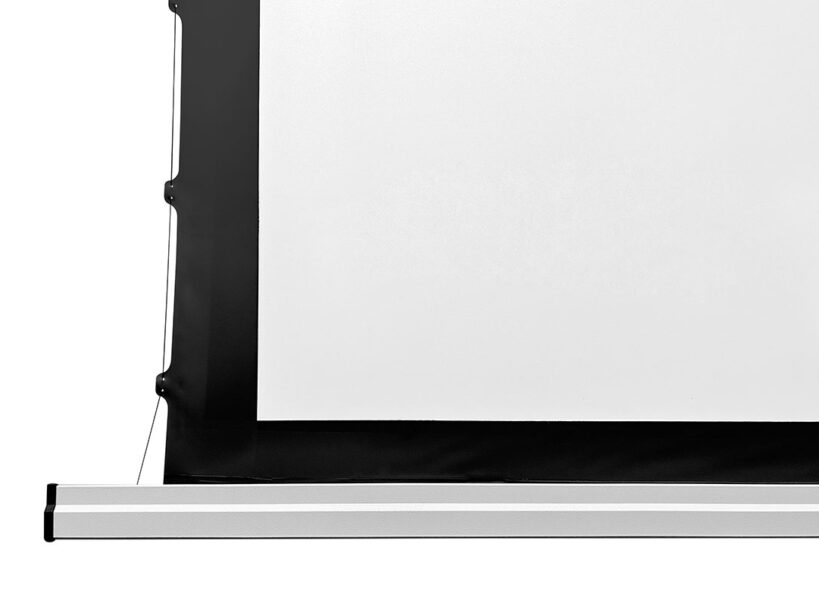

  • Standard black masking borders and black screen backing
  • Available in the following diagonal sizes:
    • 180″  and 200″ in 16:9 format



Design and Installation

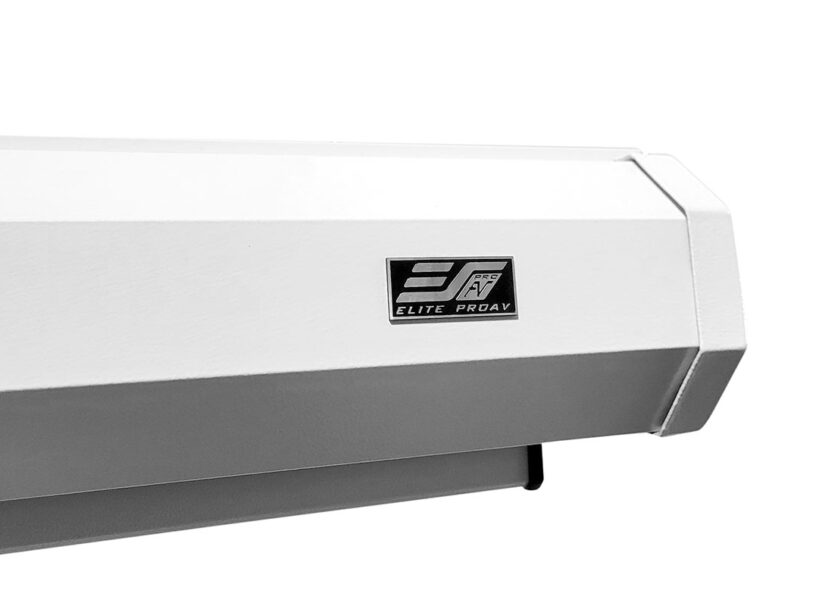

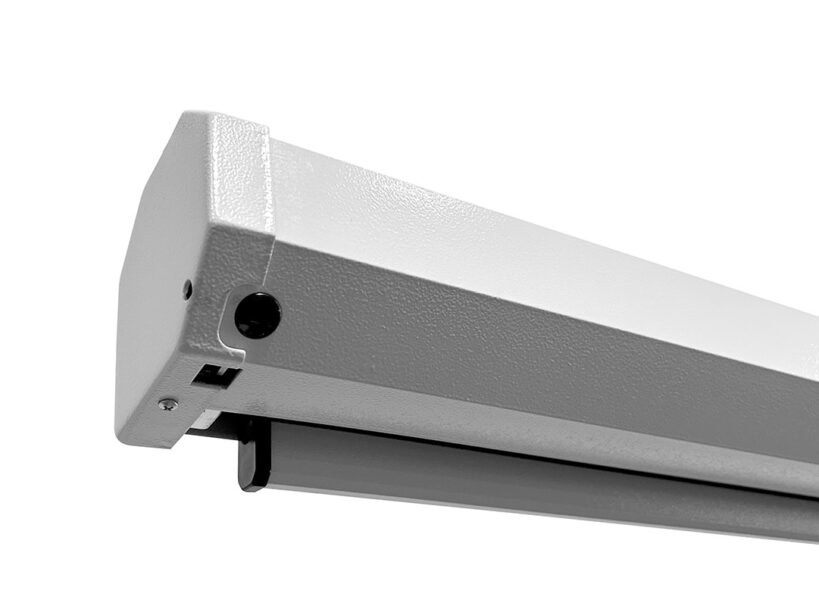

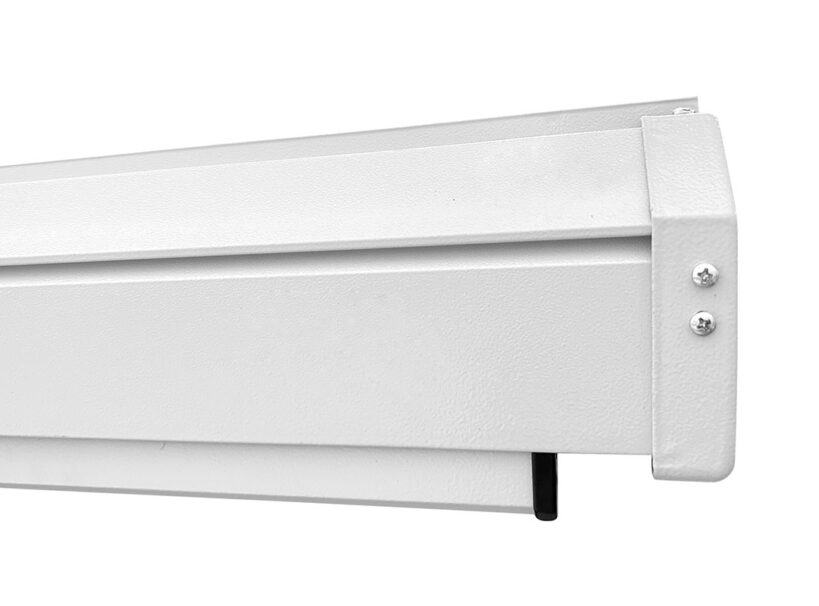

  • Streamlined arcuate profile aluminum heavy-duty white case
  • Ring bolts included on case for suspended ceiling installation
  • Plug & Play ready, no hardwire installation required



Control System

  • Internal Radio Frequency/Infrared receivers with IR, RF remotes included
  • Infrared IR “eye” extension sensor – ideal for concealed installation but still require infrared control
  • Detachable 3-way wall switch keypad for UP/STOP/DOWN manual operation
  • Wireless 5-12 volt trigger included for synchronized screen operation with the projector’s power cycle
  • RJ45 port allows 3rd party control system integration



Quality and Reliability

  • Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
  • 5-year manufacturer’s warranty

The listed measurements are for general reference only. Please contact EliteProAV™ to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification. Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. EliteProAV™ will not be held responsible or be otherwise liable for faulty installations.

Decoding the Model Number
Model Number = TE110HW2-E24
TE = Tensioned Screen
110 = Nominal Diagonal Size
H = HDTV 16:9 aspect ratio
(V = 4:3 / X = 16:10 / S = 1:1 / C = 2.35:1)
W = Matte White screen material
2 = Version 2
E24 = 24" of top black masking border/leader

Dimensions Table

Model Number
Diag. Size
Aspect Ratio
View Area (HxW)
Screen Material
Case Color
Gain
Case L. (A)
End Cap Screw Hole Distance (A3)
View W. (A1)
Screen W. (A2)
Overall H. w/  Bracket (B)
View H. (B1)
Screen H. (B2)
Bottom Border (B3)
Overall H. (w/out Bracket) (B4)
B5
End Cap W. (C1)
Screen Material Edge to End Cap Distance (C)
End Cap H. (D1)
Bracket H. (E)
Bracket W. (E1)
D
TE180XWH
180"
16:9
88.3"x156.9"
CineWhite®
White
Gain 1.1
187.4
180.9
156.9
172.6
108.0
88.3
100.6
2.4
105.6
10.0
5.0
0.6
5.0
7.4
5.4
98.4

CineTension Plus Series Line Drawing

Dimensions Table

Models Numbers
Diagonal Size
Aspect Ratio
View Area (HxW)
Screen Material
Case Color
Gain
Case Length
(A)
Distance Between
Brackets (A1)
Screen Width (A2)
View Width (A3)
L/R Border (A4)
Weight Bar Length (A5)
Overall Height without Bracket
(B)
Case Height
(B1)
Top Border
(B2)
View Height (B3)
Bottom Border
(B4)
Screen Height
(B5)
Cace Width
(C)
Adjustable Bracket Range
(C1)
(C2)
(C3)
(C4)
TE200HR2
200"
16:9
98.1"x174.3"
Wraith Veil
White
Gain 2.2
204.0
197.2
192.0
174.3
8.9
196.0
112.3
6.7
4.0
98.1
3.5
105.6
6.7
8.7-11.2
1.0
0.8
2.6

CineTension Plus Series Line Drawing

Packaging Dimensions

Model Number
Diag. Size
Aspect Ratio
N.W. (lbs.)
G.W. (lbs.)
N.W. (kgs)
G.W. (Kgs)
Packaging Dimensions (LxHxW)
TE180XWH
180"
16:9
115.1 lb
124.6 lb
52.2 kg
56.5 kg
193.5"x10.4"9.3"
TE200HR2
200"
16:9
142.3 lb
178.0 lb
64.6 kg
80.8 kg
210.6"x13.4"x11.6"
